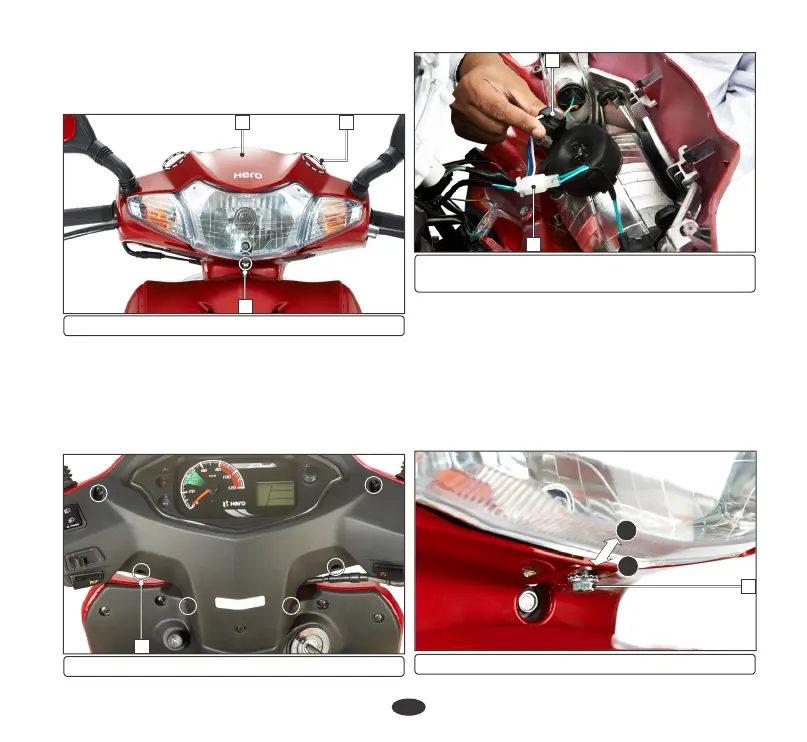

Headlamp case (Removal)
Ÿ Remove the rear view mirror.
Ÿ Remove screw (1).
(4) Screws
Ÿ Disconnect the headlamp connector (5),
position lamp connector (6) and remove
the headlamp case.
Ÿ Pull the headlamp case (2) slightly up,
carefully release the tabs (3) from the slots.
Ÿ Remove the screws (4).
(1) Screw (2) Headlamp case (3) Tabs
2
1
4
3
(5) Headlamp connector
(6) Position lamp connector
Headlamp focus is factory preset. However in
case of adjustment required please follow the
steps as given below.
Headlamp focus
Installation
Vertical adjustment
Installation can be done in the reverse order of
removal.
5
6
(1) Bolt (A) Up (B) Down
A
B
1
36
