HERO DUET - Body Parts Removal; Pillion Footrest; Center Compartment

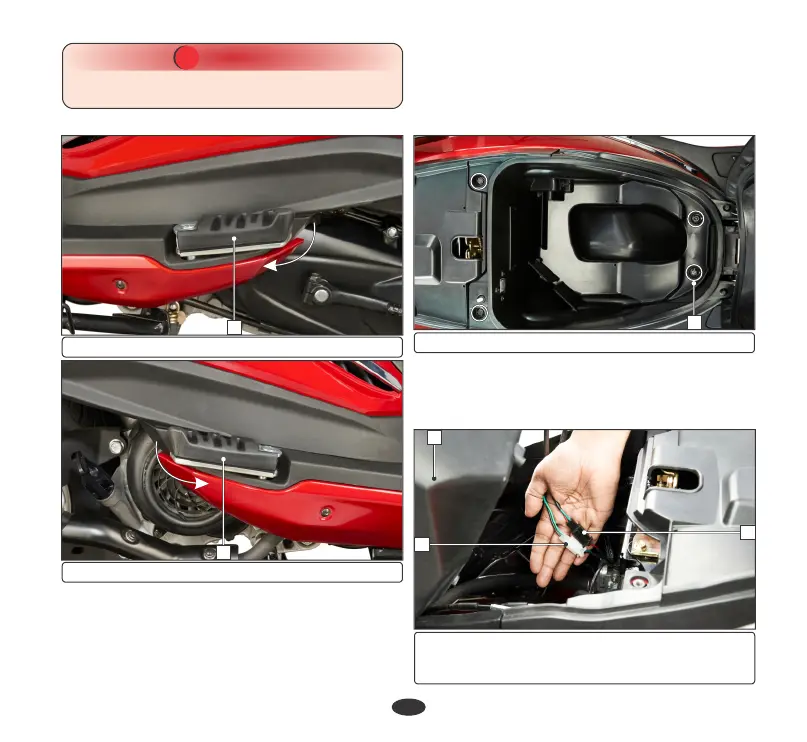

Pillion footrest
(1) Left footrest
1
(2) Right footrest
2
Move the right and left footrest in the direction
shown by arrows to open. Folding can be done
by moving footrest in the reverse direction.
31
CAUTION
!!
Ensure that adequate care should be taken
while cleaning the side stand switch.
BODY PARTS REMOVAL
Ÿ Open the seat (page 26).
Center compartment (Removal)
Ÿ Remove the bolts (1) from the center
compartment.
Ÿ Slightly lift up the center compartment
from the rear and disconnect the boot
lamp connector (2) and USB charger
connector (3).
(3) USB charger connector
(2) Boot lamp connector
(4) Center compartment
3
4
2
(1) Bolts
