AIR CLEANER ELEMENT
The air cleaner element is of viscous type, it
should be replaced at regular intervals (pages
49). Early replacement may be required
when riding in unusually wet or dusty areas.
Refer to the safety precautions (page 48).

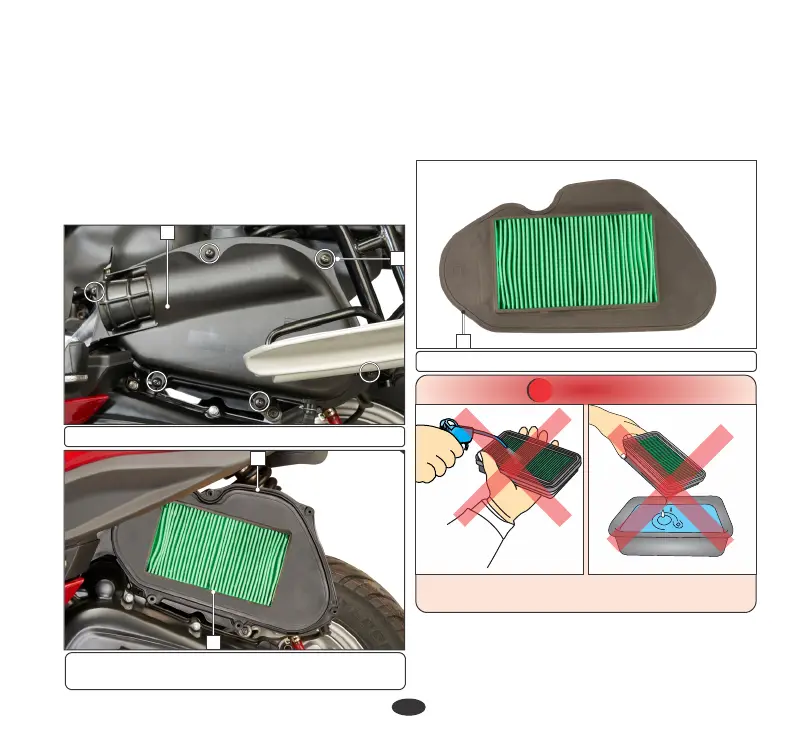

• Remove the air cleaner cover (1) by
removing the screws (2)
• Remove the body cover (page 32).
•
Remove the air cleaner assembly (3) from
housing (4).
•
Inspect the air cleaner element for any dust
or dirt accumulation.
•
Replace the air cleaner element, if found
choked.
(3) Air cleaner assembly
(4) Air cleaner housing
3
4
•
Clean the air cleaner housing (4) using a
shop towel.
•
Install the air cleaner assembly (new, in case
of replacement).
(3) Air cleaner assembly
3
CAUTION
!!
•
Do not blow compressed air.
•
Do not wash using any solvent.
