(1) Free play 2-6 mm
1
(2) Grommet (3) Lock nut (4) Adjuster
(A) Decrease free play (B) Increase free play
3
A
B
4
2
from the fully open to the fully closed position.
Check at full left and full right steering
positions. Inspect the condition of the throttle
cable from the throttle grip down to the
carburetor. If the cable is kinked, chafed or
improperly routed, it should be replaced or

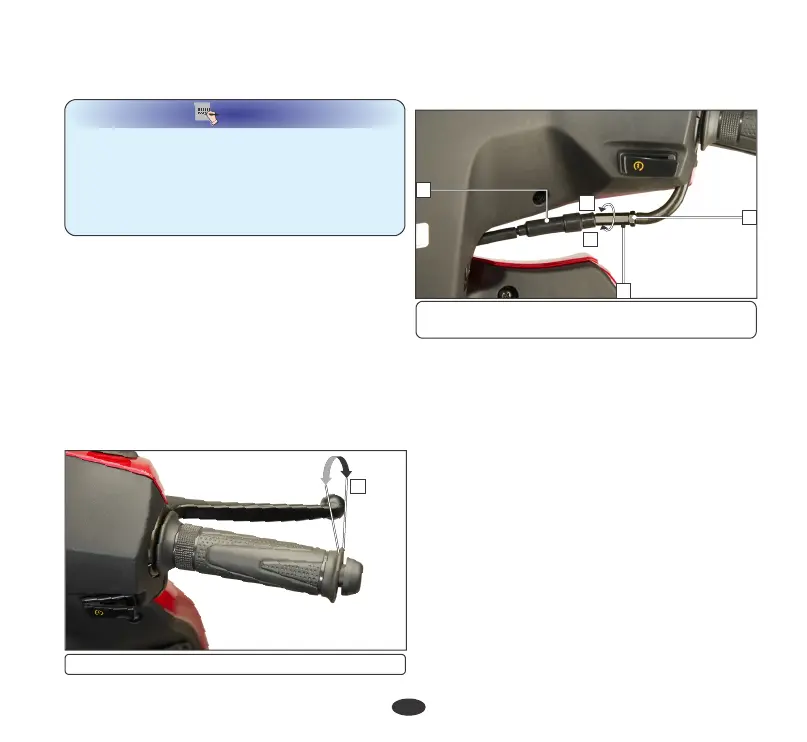

rerouted. Standard throttle grip free play (1)
is approximately 2-6 mm of grip rotation.
Throttle operation
Cable Inspection
Check for smooth rotation of the throttle grip
Free Play Adjustment
Slide the grommet (2), loosen the lock nut
(3) and turn the adjuster (4).
•
Install the removed parts in the reverse
order of removal.
Refer to the safety precautions (page 48).
•
Remove the air cleaner element housing
cover (1) by removing the screw (2).
Secondary air supply system
•
Soak the air cleaner element in gear oil
(SAE-90) until saturated, then squeeze out
the excess oil.
Secondary air cleaner element cleaning
•
Remove the air cleaner element (3).
•
Wash the air cleaner element in clean,
nonflammable or high flash point solvent
and let it dry thoroughly.
The air cleaner element should be serviced at
regular intervals (pages 49). Service more
frequently when riding in unusually wet or
dusty areas.
•
Remove the body cover (page 32).
53
•
Install the air cleaner cover.
•
Install the body cover (page 33).
•
Replace air cleaner element once in every
15000 km or early replacement may be
required when riding in dusty areas.
•
At 12000 km inspect if air cleaner element
is choked. If found choked, replace the air
cleaner element to keep the engine healthy.
