HERO DUET - Front Center Cover

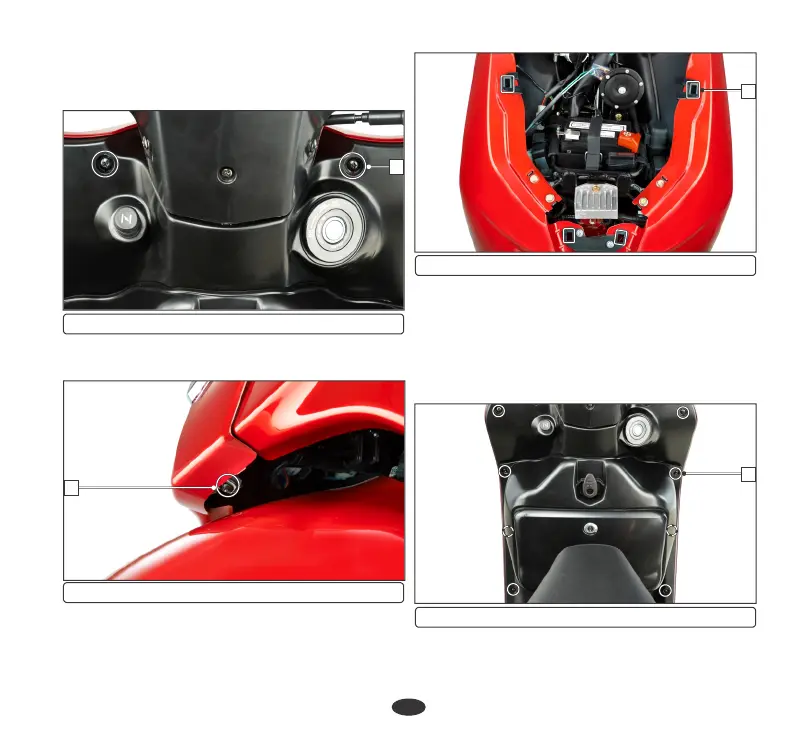

Ÿ Remove the screw (2) near the front
fender.
(1) Screws
1
(2) Screw
2
Ÿ Release the front center cover lugs from the
grommets (3) and pull it in slightly upwards
direction to remove it.
Ÿ Remove the two screws (1) on the inner
cover side.
Front Center Cover (Removal)
Front Cover (Removal)
Ÿ Remove the front center cover.
Ÿ Remove the screws from the front inner box
side and from the inner side of the box.
Installation is in the reverse order of removal.
Installation:
(3) Grommets
3
1
(1) Screws
Ÿ Remove the screws (2) from both the front
end of the vehicle
