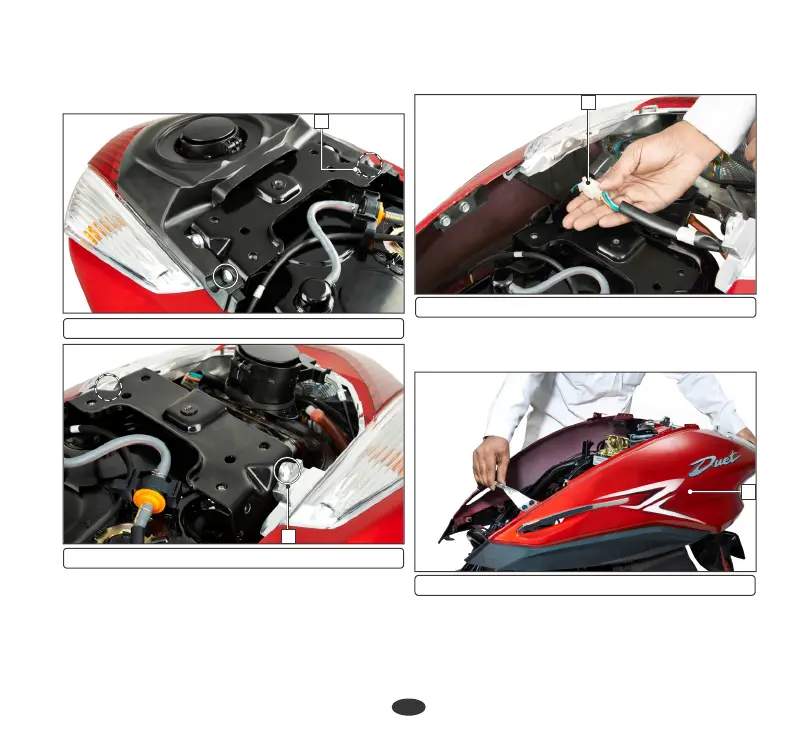

Ÿ Remove the screws (3).
Ÿ Remove the allen bolts (4) from the fuel lid
cover.
(4) Fuel lid cover allen bolts
33
(5) Body cover bolts
5
4
Ÿ Remove the center cover.
Ÿ Remove the body cover bolts (5).
6
(6) Tail/stop lamp connector
Ÿ Pull the body cover (7) by lifting it from the
front and pulling out towards the rear.
Remove the complete body cover.
Installation
Installation can be done in the reverse order
of removal.
8
(7) Body cover
Ÿ Disconnect the tail/stop lamp connector
(6).
