HERO DUET - Page 21

(6) S econd adjuster nut
(i) Decrease free play (ii) Increase free play
(i)
(ii)
6
B
1
2
(i)
(ii)
6
B
F
I
18
NOTE
•
“1” & “2” is marked on integrated brake arm
for VX model.
•
Adjustment is same for LX & VX model.
•
“F” & “I” is marked on integrated brake arm
for LX model.
FREE PLAY: 10-20 mm
•

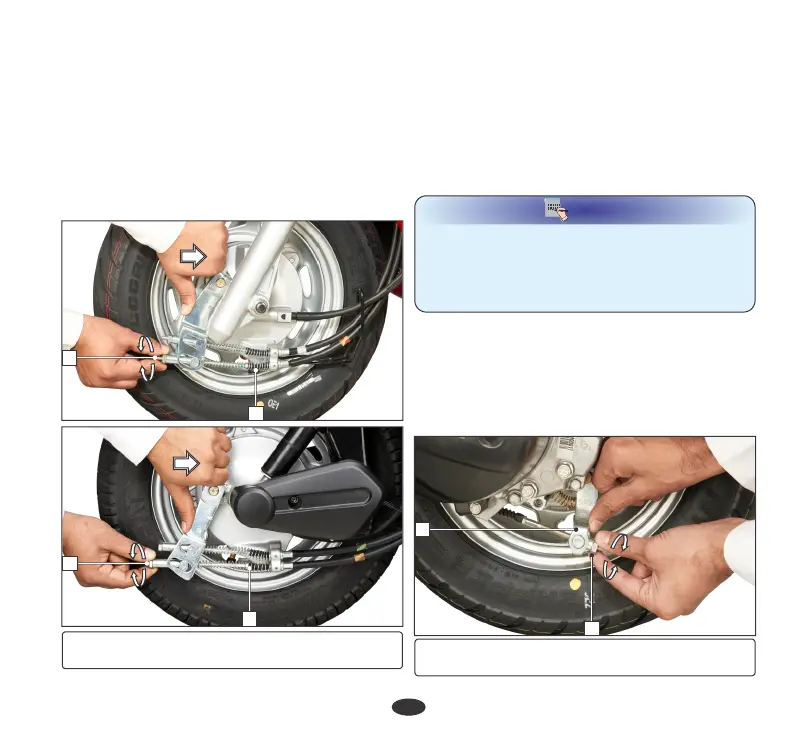

Make free play adjustment by turning the
adjuster nut (8) in the brake arm (9).
•
Check the free play of integrated brake
lever.
•
Rear brake
(i) Decrease free play (ii) Increase free play
(8) Adjuster nut (9) Brake arm
(ii)
(i)
9
8
Ÿ Turn the second adjuster nut (6) until a gap
Ÿ Push the integrated brake arm (4) by hand
in the direction as shown.
is created between joint (7) and the slot on
the first side in integrated brake arm.
Ÿ After ensuring the gap, turn the second
adjuster nut counterclockwise by half
rotation.
Ÿ If the free play is more than 20 mm further
turn the adjuster nut to obtain desired free
play.
Ÿ Check the free play of right lever.
FREE PLAY: 10-20 mm
Ÿ Turn the first adjuster nut (5) till you cannot
turn it by hand.
Left hand front brake cable (B) on “2 or
I” side.
