(2) Odometer Shows accumulated mileage.
(4) Fuel gauge Indicates approximate fuel quantity.
Sl. No. Description Function
(1) Speedometer Indicates driving speed.
(6) Neutral indicator Light glows when vehicle is in neutral.
(5) High beam indicator Light glows when headlamp is in Hi beam.
(3) Gear shifting Maximum operating speed in each gear.
Indicator glows for few seconds and turns “OFF”
(7) i3s indicator
indicating that i3s system is functional.
(8) Turn signal indicator Flashes when turn signal switch is operated.
INSTRUMENTS AND INDICATORS

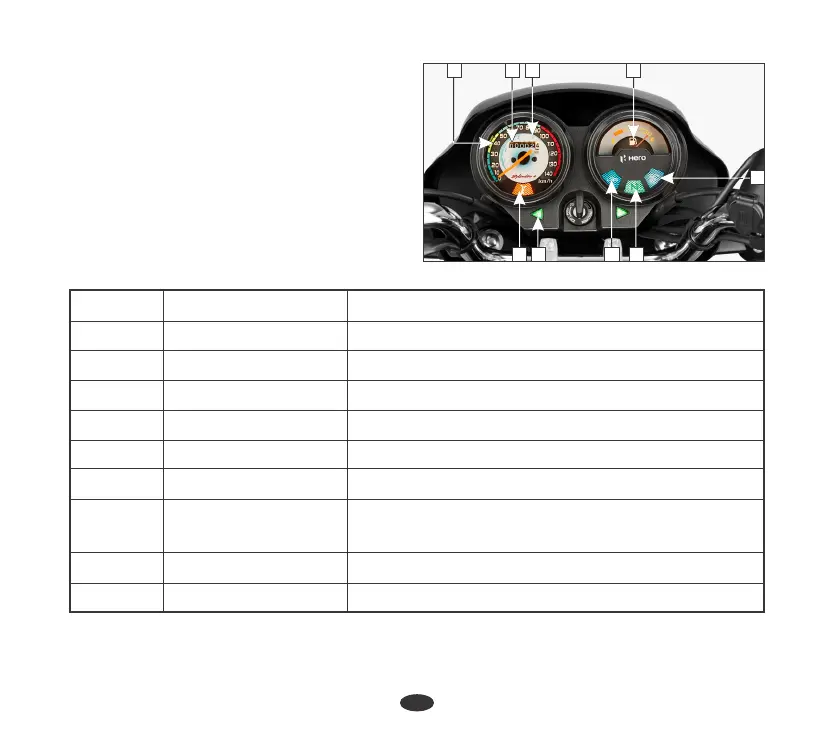

The indicators are in the speedometer panel
above the headlamp. The functions are as
below.
1
2 4
5
13
68
9
(9)
Side stand indicator
Light glows when vehicle parked on side stand.
