32
NOTE
Clean filters as specified in the maintenance
schedule.
Air cleaner element inspection
•

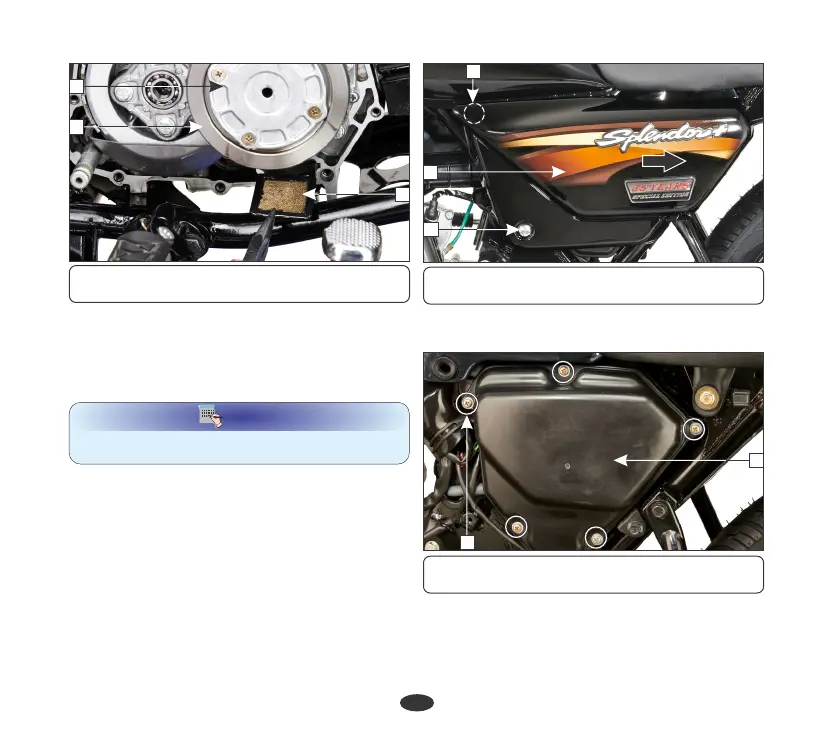

Remove the side cover (1) by removing side
cover screw (2). Pull out lug (3) from the
grommet and slide the cover back.
AIR CLEANER
The air cleaner element is of dry paper pleated
type and it should be serviced at regular
intervals (page 26). When riding in dusty
areas, more frequent service may be
necessary.
(1) Side cover (2) Side cover screw
(3) Lug
•
Remove the air cleaner cover screws (4)
and the cover (5).
1
2
4
5
(4) Air cleaner cover screws
(5) Air cleaner cover
•
Press the mounting clamp (6) to release the
air cleaner assembly from the housing and
remove the air cleaner assembly (7).
(6) Oil filter screen (7) Centrifugal filter cover
(8) Centrifugal filter
8
7
6
•
Fill the crankcase with clean engine oil as
per specification (page 26).
•
Reinstall the centrifugal filter cover, right
crankcase cover, kick starter pedal, rider
foot rest and muffler.
3
