DRIVE CHAIN SLIDER INSPECTION
(Refer to “Maintenance Schedule” on
(page 26).

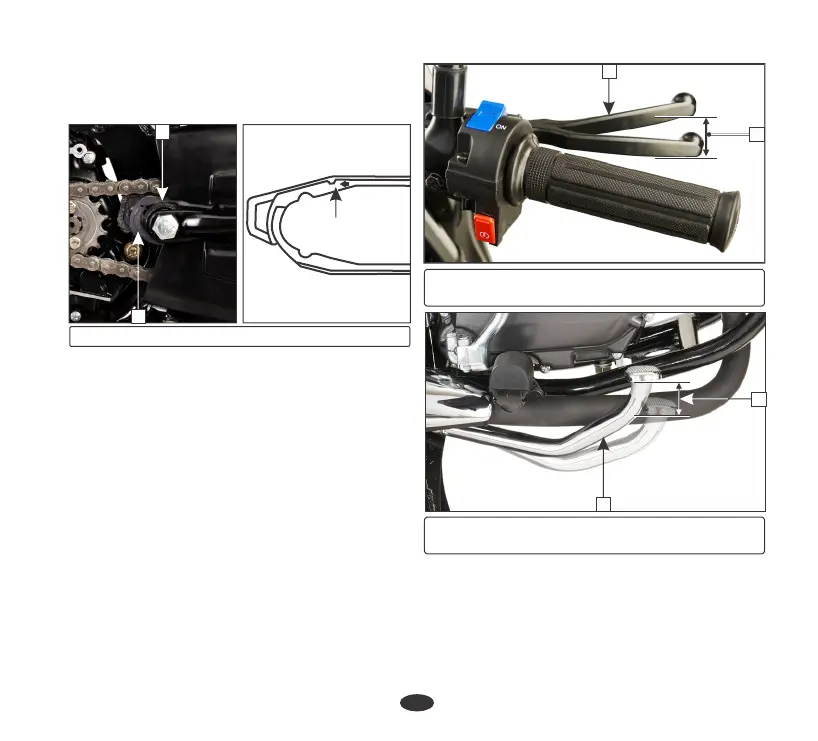

(1) Drive chain slider (2) Wear limit
CUTOUT
For replacement, visit your Authorised Hero
MotoCorp workshop.
BRAKES
(a) Integrated braking system
Brakes are items of personal safety and should
always be maintained with proper
adjustments.
When one applies the Integrated/Rear brake
pedal, front & rear brakes activate jointly.
Check the drive chain slider (1) for wear, the
chain slider must be replaced if it is worn to the
bottom of the cutout or wear limit (2) is
reached.
(2) Integrated/Rear brake pedal
(3) Free play: 20-30 mm
(1) Front brake lever
(3) Free play 10-20 mm
1
3
3
brake starts to engage is called free play (3).
The distance, the front brake lever (1) and
integrated brake pedal (2) moves before each
2
1
2
