Battery installation
•
Reinstall in the reverse order of removal. Be
sure to connect the (+)ve terminal first, then
the (-)ve terminal.
•
Check all bolts and other fasteners are
secure.
Fuse Box (1) : Location : Mounted on the
clamp near battery (4).
Fuse Type : Blade fuse
In circuit fuse (2): 15A, 10A
Spare fuse (3): 15A, 10A

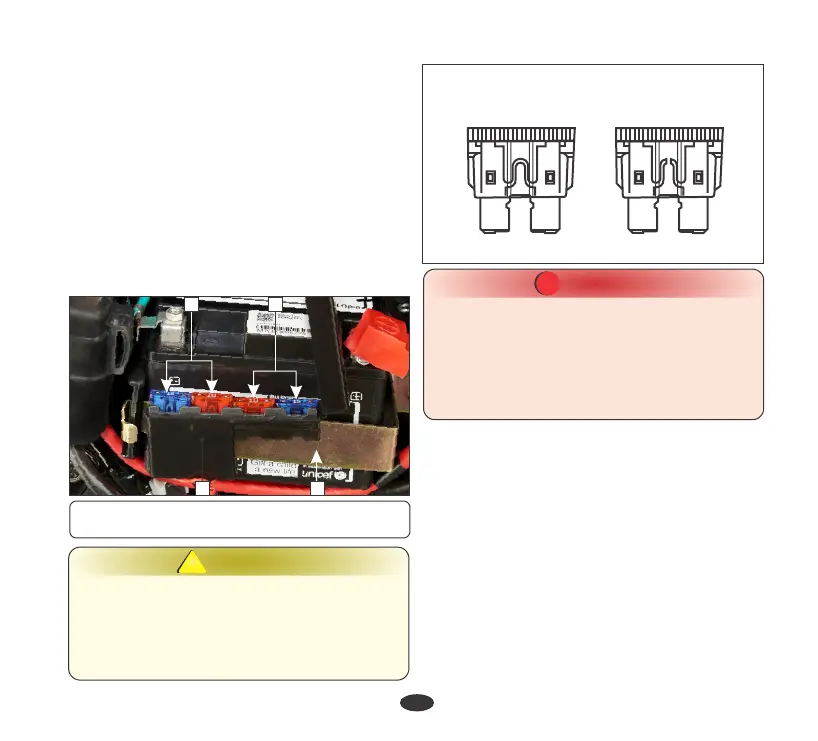

FUSE REPLACEMENT
(1) Fuse box (2) Blade fuse 15A,10A
(3) Spare fuse 15A,10A (4) Clamp
2 3
1 4
WARNING
!!
•
Never use a fuse with a different rating from
that specified. It may lead to serious damage
to the electrical system or a fire due to short
circuit.
•
Battery gives off explosive gases. Keep
sparks, flames & cigarettes away.
CAUTION
!!
•
Do not attempt to start or ride the vehicle
without a charged battery, it can cause
fusing of the bulbs and permanent damage
to certain electrical components.
•
Turn the ignition switch "OFF" before
checking or replacing the fuse to prevent
accidental short-circuiting.
The stop lamp switch (1) must be adjusted so
that stop lamp glows when rear brake is
applied. Rear brake free play (page 41)
should be adjusted before performing stop
lamp switch adjustment. The procedure for
adjusting stop lamp switch is as follows:
STOP LAMP SWITCH
•
Turn the ignition switch to the “ON”
position.
•
Turn the adjusting nut (2) to position stop
lamp switch at a point where the stop lamp
will glow just before the brake pedal is
depressed to the limit of its free play.
