HERO SPLENDOR+ - TYRE INSPECTION AND MAINTENANCE; Tyre Wear, Damage, and Tread Limits

44
•
Remove the wheel.
•
Remove the speedometer cable (1) by
pressing the tab (2) and pulling cable out.
•
Support the vehicle securely on the main
stand and raise the front wheel off the
ground.
•
Remove the axle (10) and side collar (11).
(a) Front wheel
•
Disconnect the brake cable (3) and
integrated brake cable (4) from integrated
brake arm (5) and brake panel (6) by
removing the front brake adjusting nut (7)
and integrated brake adjusting nut (8).
Removal
WHEEL
•
Remove the axle nut (9).

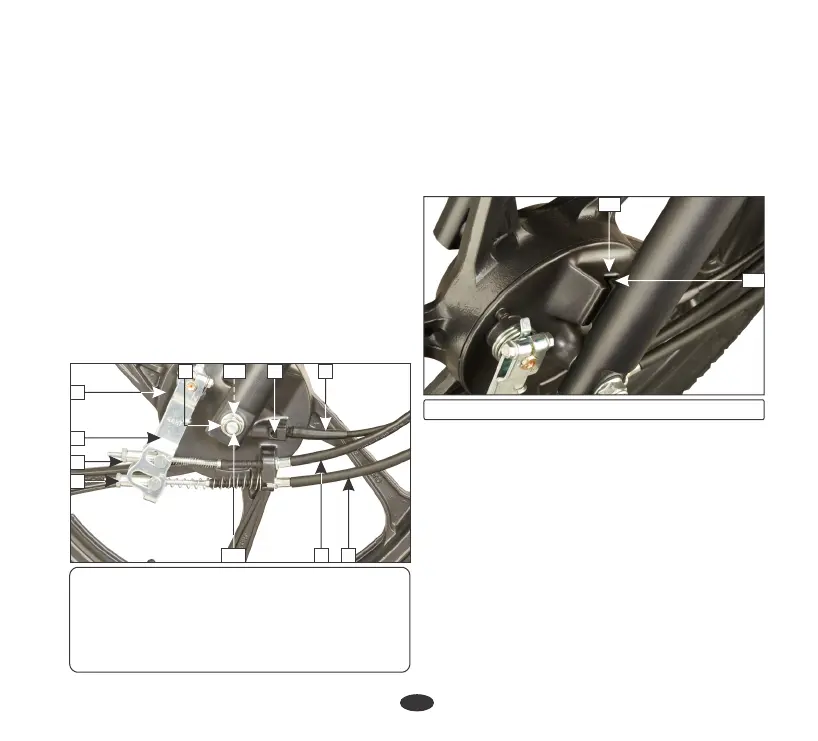

(1) Speedometer cable (2) Tab
(3) Front brake cable (4) Integrated brake cable
(5) Brake arm (6) Brake panel
(7) Front brake adjusting nut
(8) Integrated brake adjusting nut
(9) Axle nut (10) Axle (11) Side collar
Installation
•
Install the front wheel by ensuring that the
lug (12) on the left fork is located in the slot
(13) in the brake panel.
•
Reverse the removal procedure
•
Rotate the front wheel & see if the
speedometer needle is working.
(12) Lug (13) Slot
•
Adjust the brake (page 40).
•
After installing the wheel, apply the brake
several times and check for free wheel
rotation when released.
Axle nut torque: 5.4 Kgf-m
•
Tighten the axle nut.
6
5
8
7
34
129
11
10
12
13
