Hertz S8 DSP - 5.3 Output Signals; 5.4 Connect S8 DSP to PC;MAC

12
USER’S MANUAL /
PWR/REM
BT
STATUS
SPEAKER IN
PRE IN - DIGITAL IN
OUTPUT
Supplied
USB Cable
1
S8 DSP can be connected to PC/MAC:
1. Using the USB cable
2. Using a Bluetooth connection.

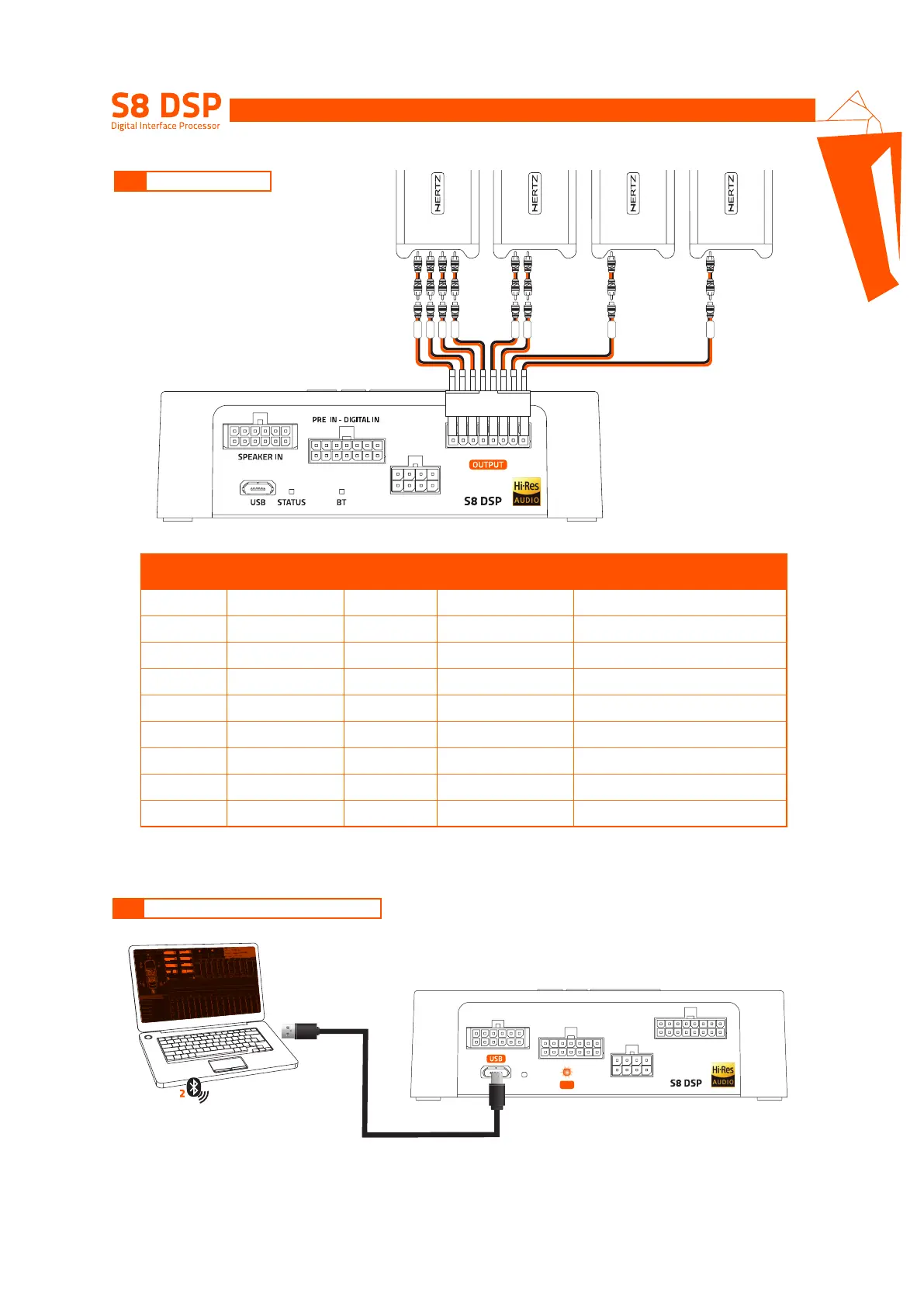

5.4 CONNECT S8 DSP TO THE PC/MAC
12345678
PWR/REM
CH 5 ÷ CH 6 CH 1 ÷ CH 4 CH 8 CH 7
AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER
CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
5.3 OUTPUT SIGNALS
DEFAULT OUTPUT CONFIGURATION
OUTPUT CH NAME FILTER FILTER TYPE FILTER FREQUENCY/SLOPE
CH1 Front TW Left HI PASS BUTTERWOORTH 3412 Hz @ 12dB
CH2 Front TW Right HI PASS BUTTERWOORTH 3412 Hz @ 12dB
CH3 Front WF Left BAND PASS BUTTERWOORTH 80 Hz @ 12dB / 3412 Hz @ 12dB
CH4 Front WF Right BAND PASS BUTTERWOORTH 80 Hz @ 12dB / 3412 Hz @ 12dB
CH5 Rear Left HI PASS BUTTERWOORTH 80 Hz @ 12dB
CH6 Rear Right HI PASS BUTTERWOORTH 80 Hz @ 12dB
CH7 Center HI PASS BUTTERWOORTH 606 Hz @ 12dB
CH8 Subwoofer BAND PASS BUTTERWOORTH 20 Hz @ 12dB / 80 Hz @ 12dB
5
