USER’S MANUAL /
3. S8 DSP INSTALLATION

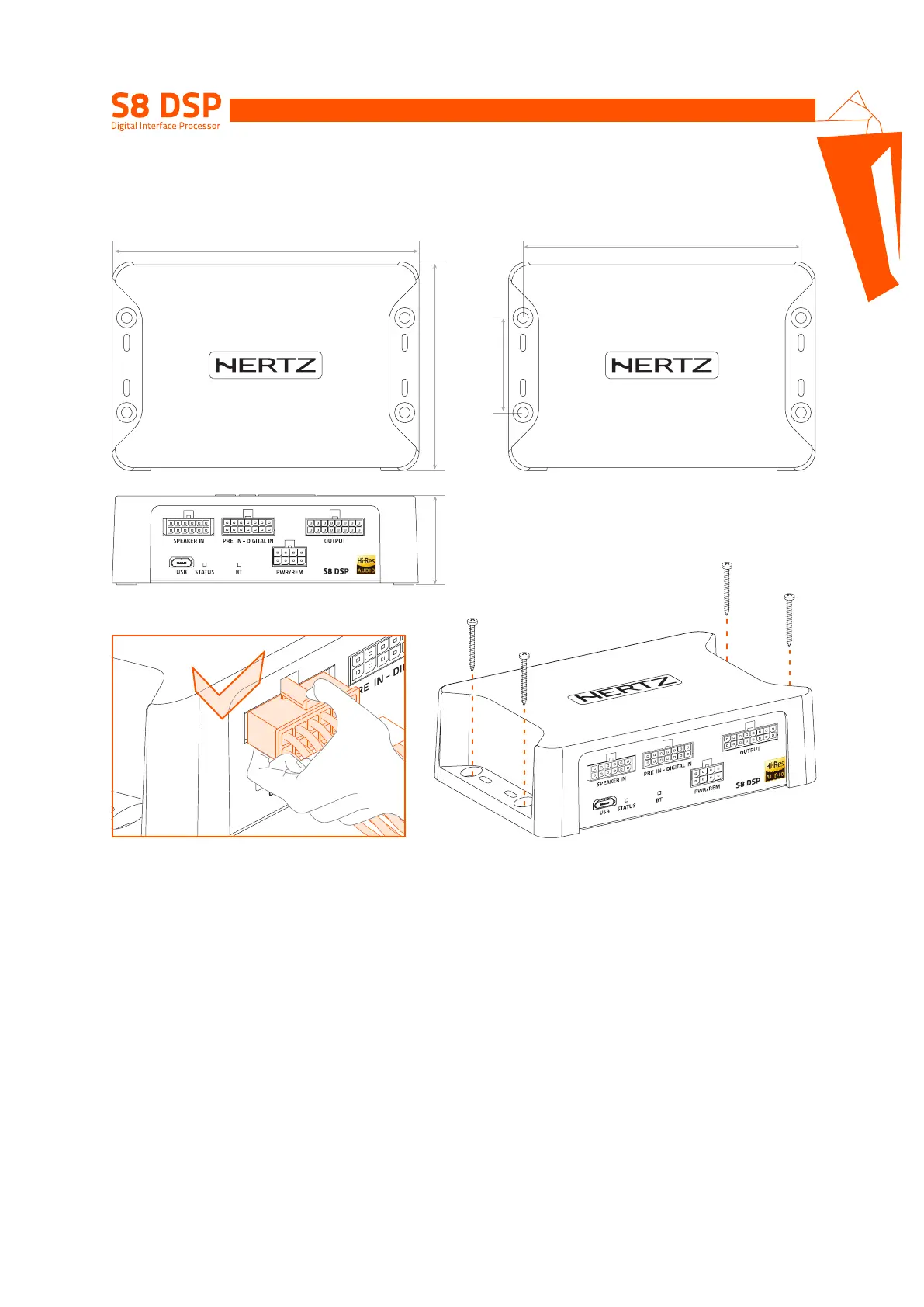

External dimensions
Mounting dimensions
Installation
WARNING for all INPUT/OUTPUT cables
88,3 mm / 3.47 in.
130 mm / 5.11 in.
40,5 mm / 1.59 in.
118 mm / 4,6 in.
OK
36,8 mm / 1.44 in.
3
