8
USER’S MANUAL /
White
White/Black
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
Blue
Blue/Black
Brown
Brown/Black
190 mm / 7.48 in.
6 mm
0.23 in.
7

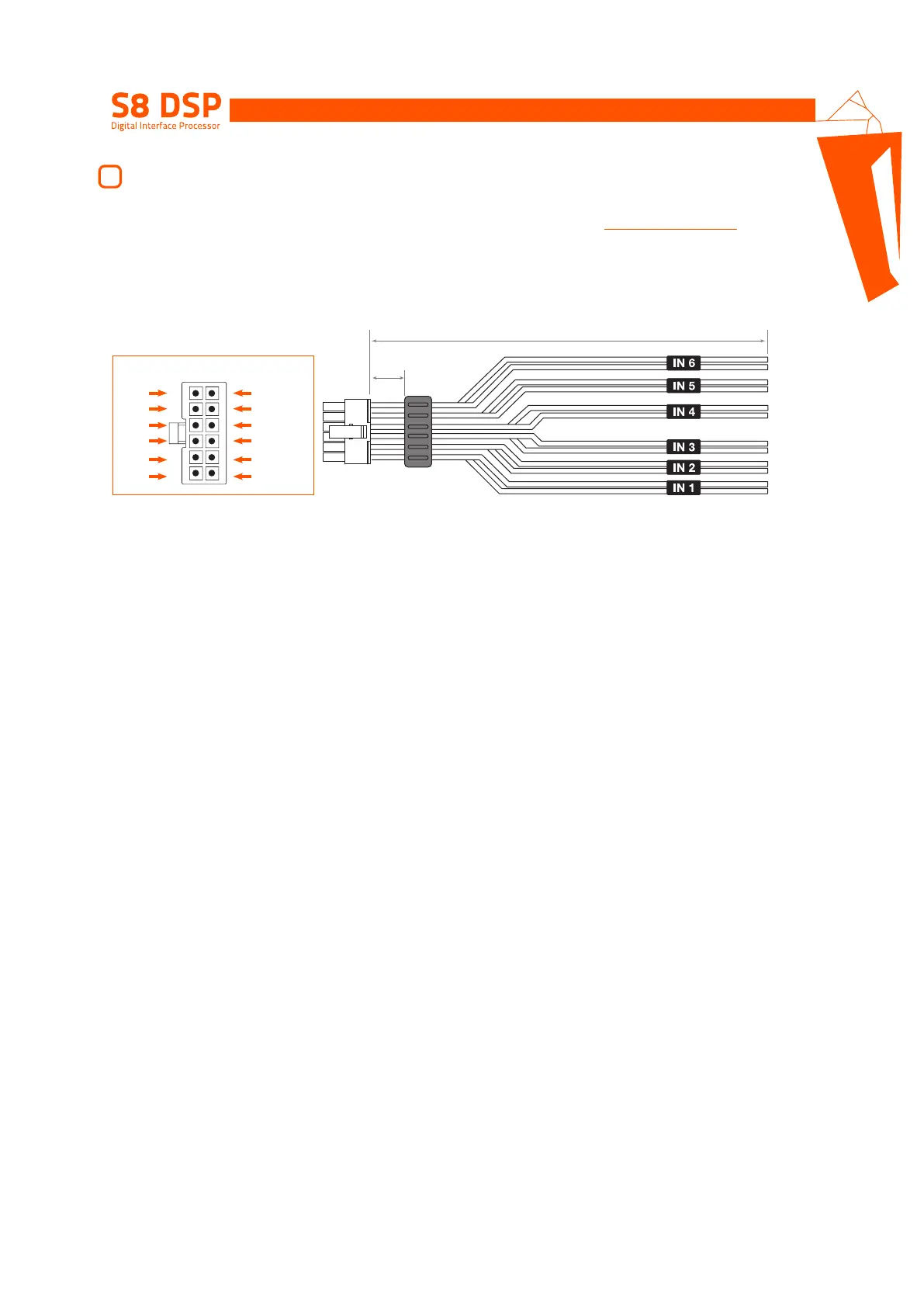

SPEAKER IN high level input:
IN1 - IN2 - IN3 - IN4 - IN5 - IN6
The cable is provided to be connected to the amplified signals coming from the analog Master source. Through the
software it will be possible to specialize the inputs by assigning the desired input
(see sections 7.5.4 - 7.5.5 - 8.2.2)
.
Input sensitivity adjustable from 2,5 to 21 VRMS.
Remark: when connecting a speaker input cable, use solderless crimped Faston terminals.
WIRE SIZE 20 AWG
REAR VIEW
White White/Black
Green Green/Black
Blue Blue/Black
Gray Gray/Black
Purple Purple/Black
Brown Brown/Black
4
