2. Setup
Before operating the lidar, strip away the protective cover on the cover lens.
2.1. Mechanical installation

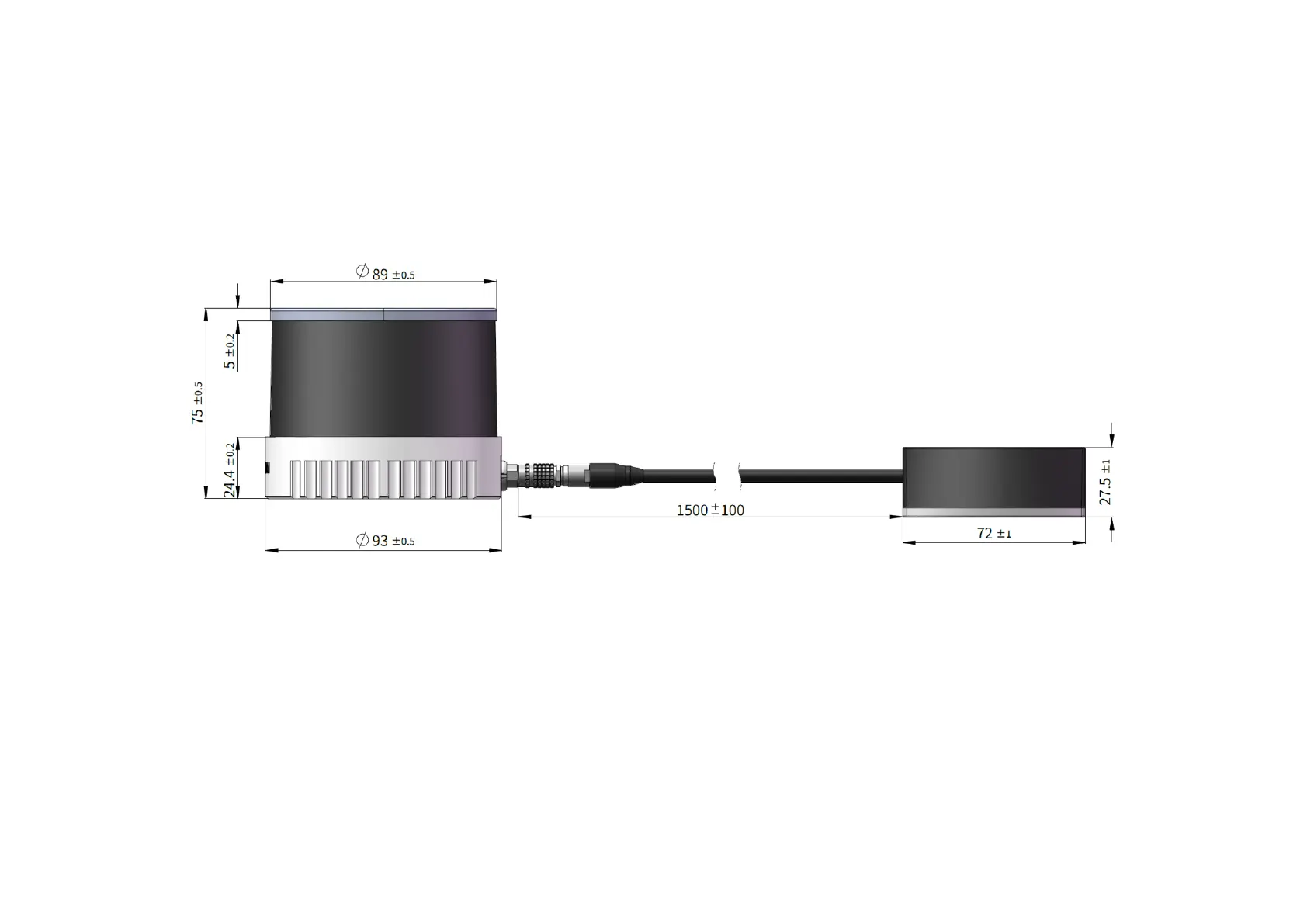

Figure 6. Front view (unit: mm)
-18-
