3.2.4. GPS time data analysis

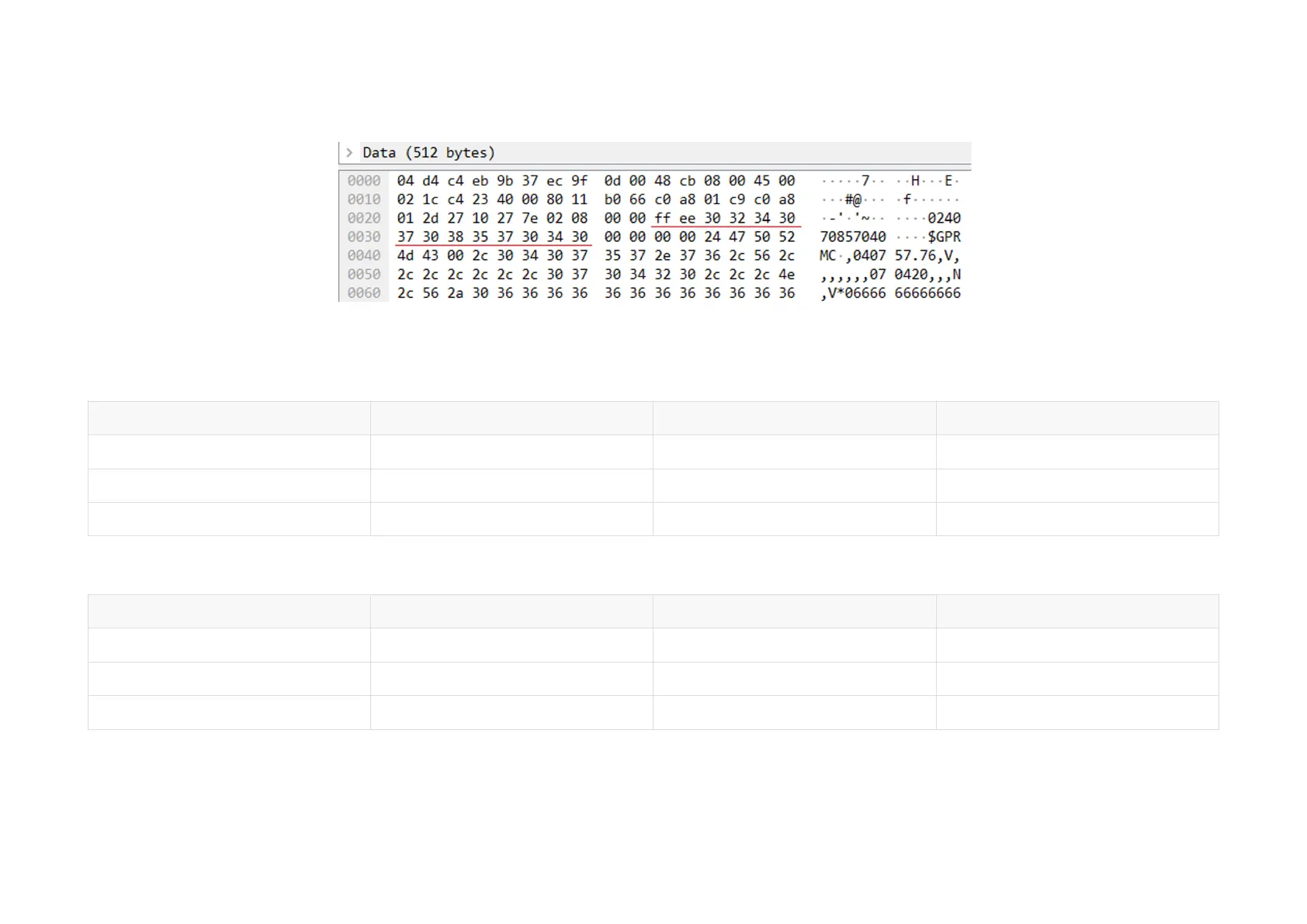

Figure 17. GPS Data packet: GPS time data (example)
Date
Field
Data (in ASCII)
Characters
Meaning
Year
0x30 0x32
'0', '2'
20
Month
0x34 0x30
'4', '0'
04
Day
0x37 0x30
'7', '0'
07
Time
Field
Data (in ASCII)
Characters
Meaning
Second
0x38 0x35
'8', '5'
58
Minute
0x37 0x30
'7', '0'
07
Hour
0x34 0x30
'4', '0'
04
-50-
