8 Technical Specifications
The following chapter describes the technical specications related to the 4U60 Storage Enclosure and the location in
which it is to be installed.
8.1 Rack Requirements
The rack mount requirements are based on the 4U standards. Rack spaces are equipped to give the enclosure ample power
and connectivity allowing them to perform as expected. They also provide effective airow, cooling for the devices, and
allow for easy access for routine maintenance.

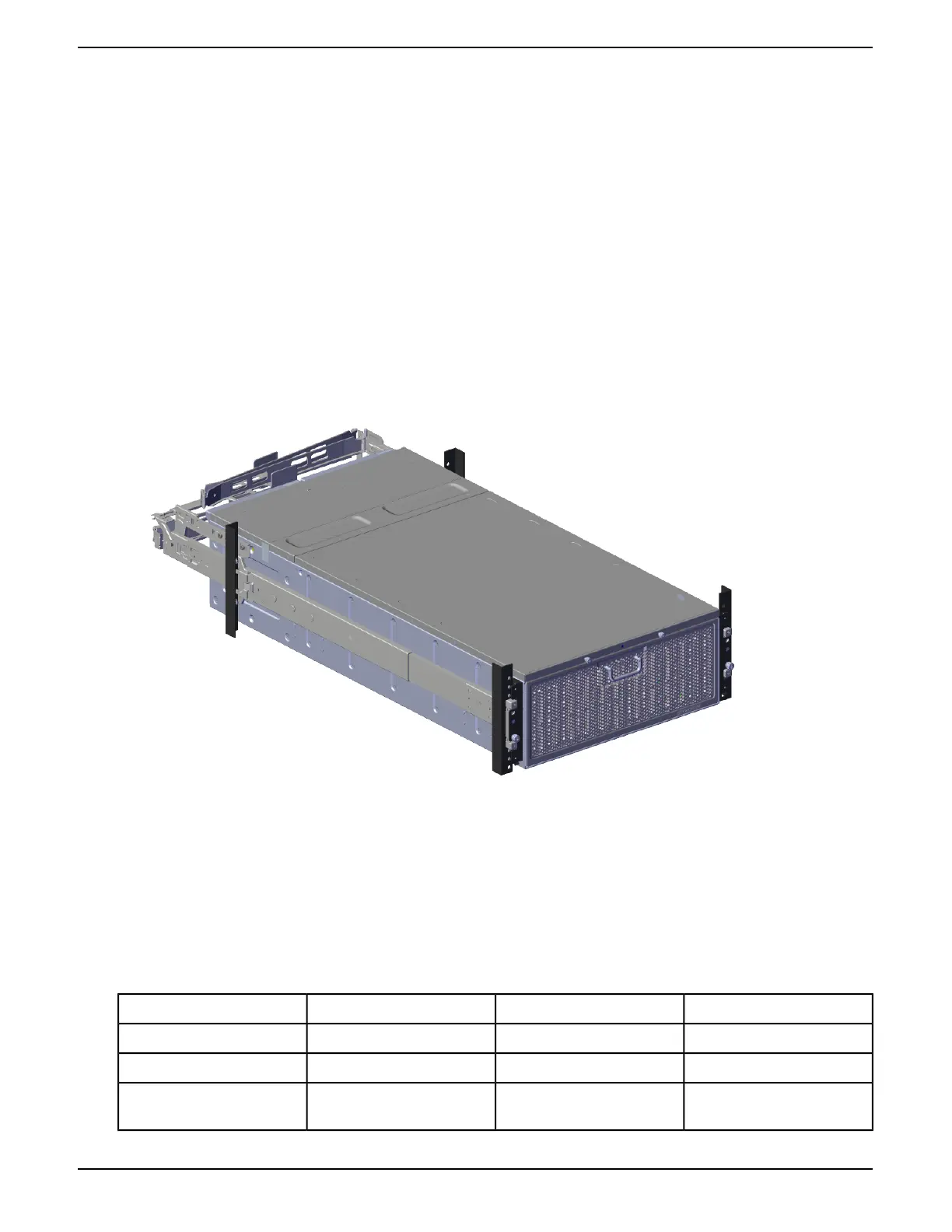

For proper rack installation of the 4U60 Storage Enclosure, please mount the enclosure according to the following drawing:
Figure 1: Assembly in the Rack
8.2 Host Connectivity
Connect the 4U60 Storage Enclosure to the host, using high quality miniSAS HD cables.
The following table displays the list of power cables approved by HGST:
Table 7: Approved Power Cables
LengthDimension (overmold)Part NumberType
1.5 metersC13 to C14BC314-BC313-1.5M-ULBIZlink Technology Inc.
1.5 metersC13 to C14R0893-C0011-01Celestica San Jose
1.5 metersC13 to C140096-0011Well Shin Technology CO
LTD
20
Installation Guide 8 Technical Specications
