9.
Push the chassis into the rack mount rails until the chassis is fully seated into the rack.

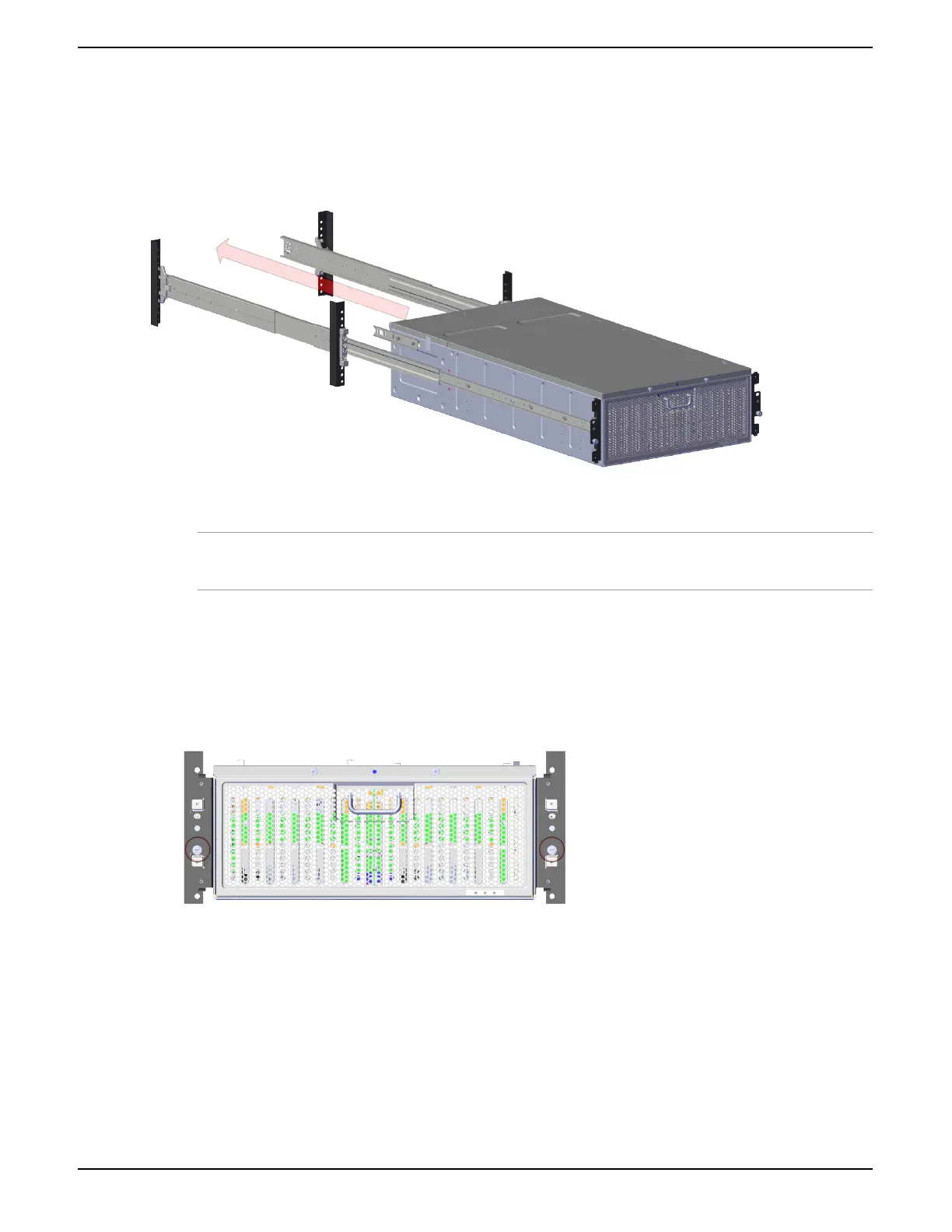

Figure 39: Sliding the Chassis into the Rack
Note: If you are met with any resistance while completing this step, verify that the slide rails and rack mount
rails are properly lined up.
10.
To secure the chassis in the seated position, press and turn the thumb screw counterclockwise until they are tight.
Figure 40: Tightening Chassis Thumb Screws
11.9 Installing the HD Mini-SAS Cables
To install the HD Mini-SAS Cables, the following hardware is required:
52
Installation Guide 11 Installing the 4U60 Storage Enclosure
