4.5 Antenna Housing – Secure Installation
Mount and wire the antenna housing no more than 10 feet away from the controller keypad unit.
To mount and wire the antenna housing, refer to the following two figures as applicable and follow
these instructions.
1. Pull the additional antenna cable through the antenna housing’s backplate cable holes.

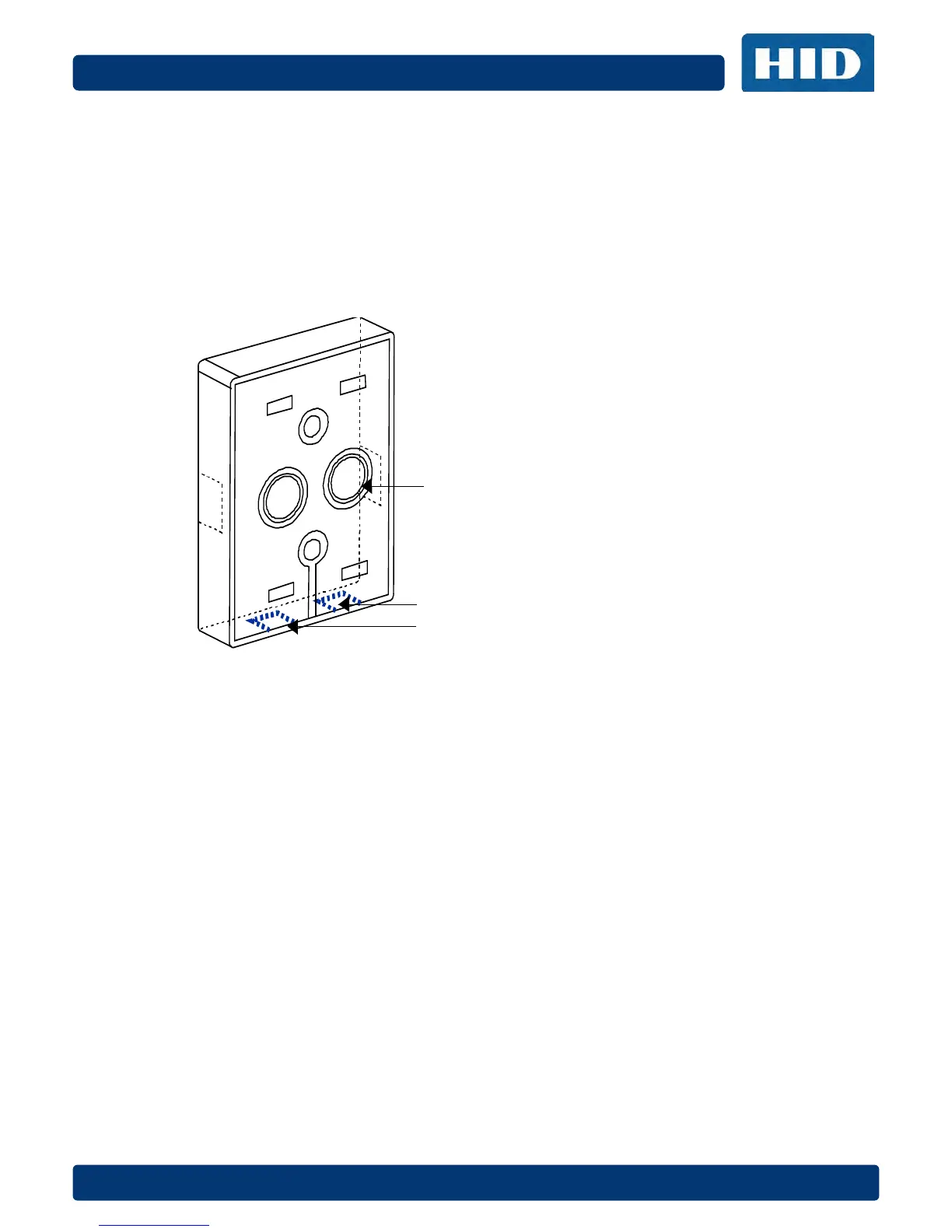

Mounting the Antenna Backplate
2. Position and secure the antenna backplate to the mounting surface so that the two
moisture release holes are on the bottom.
3. Cut the plastic connector off the antenna cable assembly.
4. Splice in the additional antenna cable. Be careful to match the wire colors to the proper pin
connectors on the 10-inch antenna cable assembly.
5. Attach the antenna housing to the backplate by inserting the four securing tabs into the
backplate.
6. Seal the wire holes with silicone.
