September 2016 Page 19 of 38
EntryProx User Manual, 4045-905, Rev. C.4
4.9 Wall Mounting
1. Use an Ademco PR-20451 magnet and reed switch (or equivalent) with foam-backed
adhesive tape.
2. Remove the backing sheet from the tape on the magnet and stick the tape to the plastic
spacer, which is factory-installed to the back of the Keypad board at location B as shown
in the figure in Section 4.9: Wall Mounting.
3. Drill a 3/8 inch hole in the wall behind the magnet location, feed the switch wire through
the wall and press the switch into place.

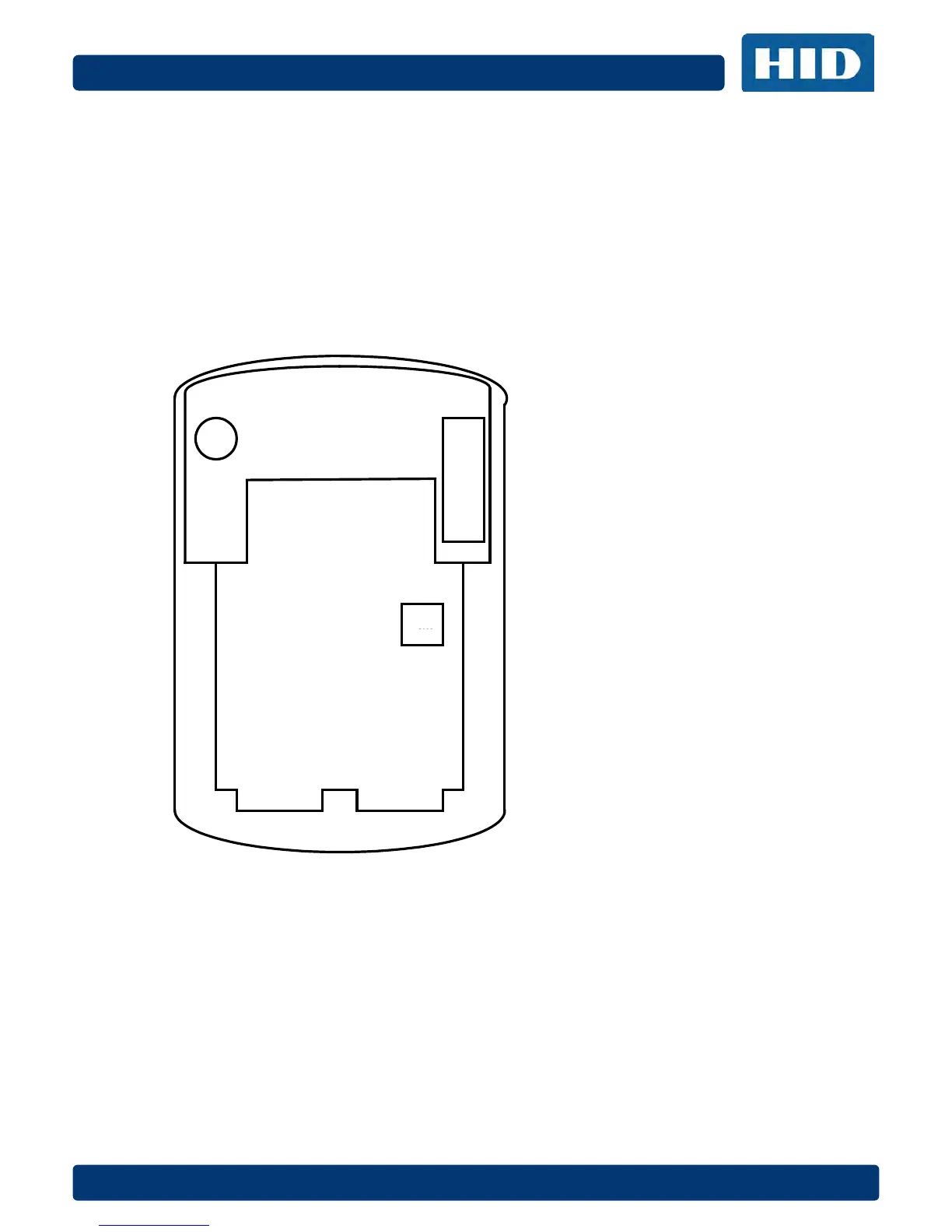

Tamper Switch Installation (shown from the back with the base removed)
Batt.
Magnet A
Magnet B
Main Electronics Board
Keypad
Electronics Board
Magnet B
Keypad Electronics Board
Main Electronics Board
Batt.
