IM-560en
Vers. 05
Page 22
ASSEMBLY INSTRUCTIONS
VERTICAL LIFTING PLATFORM PH-300

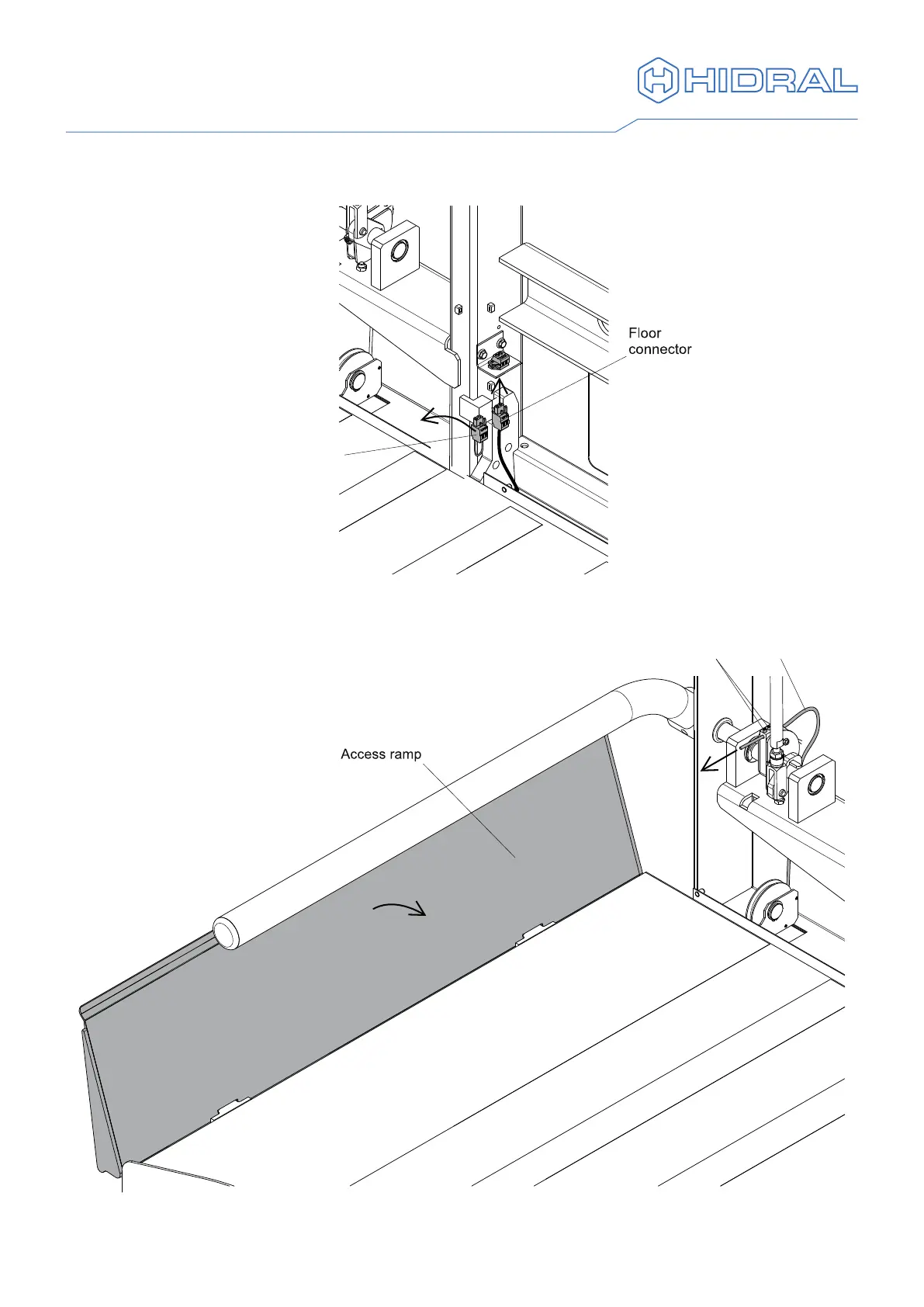

16 Reject the connector for the bridging of the safety series in the vertical structure,
and plug in the connector from the oor.
Connector for the
bridging of the
safety series
17 Bring the cable of the access ramp through the cam of the lower barrier and, with
the barriers in a horizontal position, lift the ramp and x the cable with the xing
threaded rods in the cam.
18 For lifting platforms with a xed protection barrier, x it on the oor on the supports
with M6x10 threaded rods.
