ASSEMBLY INSTRUCTIONS
PH-300 VERTICAL LIFTING PLATFORM
IM-560en
Vers. 05
Page 31

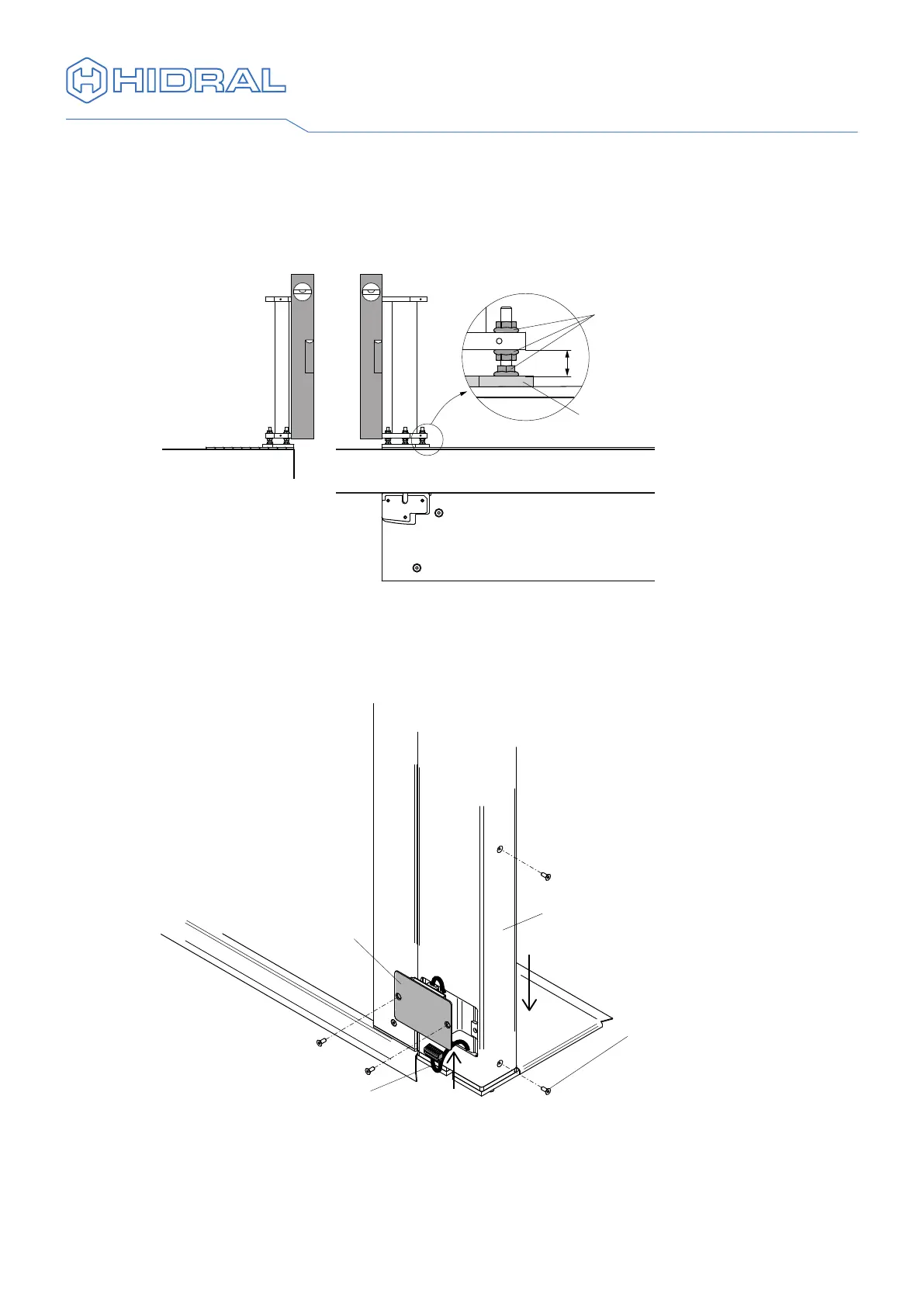

5 Attach the locking post base to the xing plate using the three M6 studs, nut and
lock nut, leaving it as vertical as possible. To do this, screw one nut on each stud
with the bevelled collar facing upwards, place the base of the locking post and
check its verticality. Adjust, if necessary, and secure using another three bevelled-
collar nuts.
IM5600_0910
1:10
Bevelled
collar nut
Locking post
fixing plate
15
6 Remove the connector cover from the locking post and leave it loose.
7 Insert the push button panel and lock cable into the locking post and pull it out
through the cover window. Place the locking post on the base and secure it using
six M4x10 countersunk screws.
Locking post
M4x10
countersunk screw
IM560_0915
1:5
Push button
panel and lock cable
Connector
cover
