Chapter 1. Checking and Handling
1-6
y Impact resistance

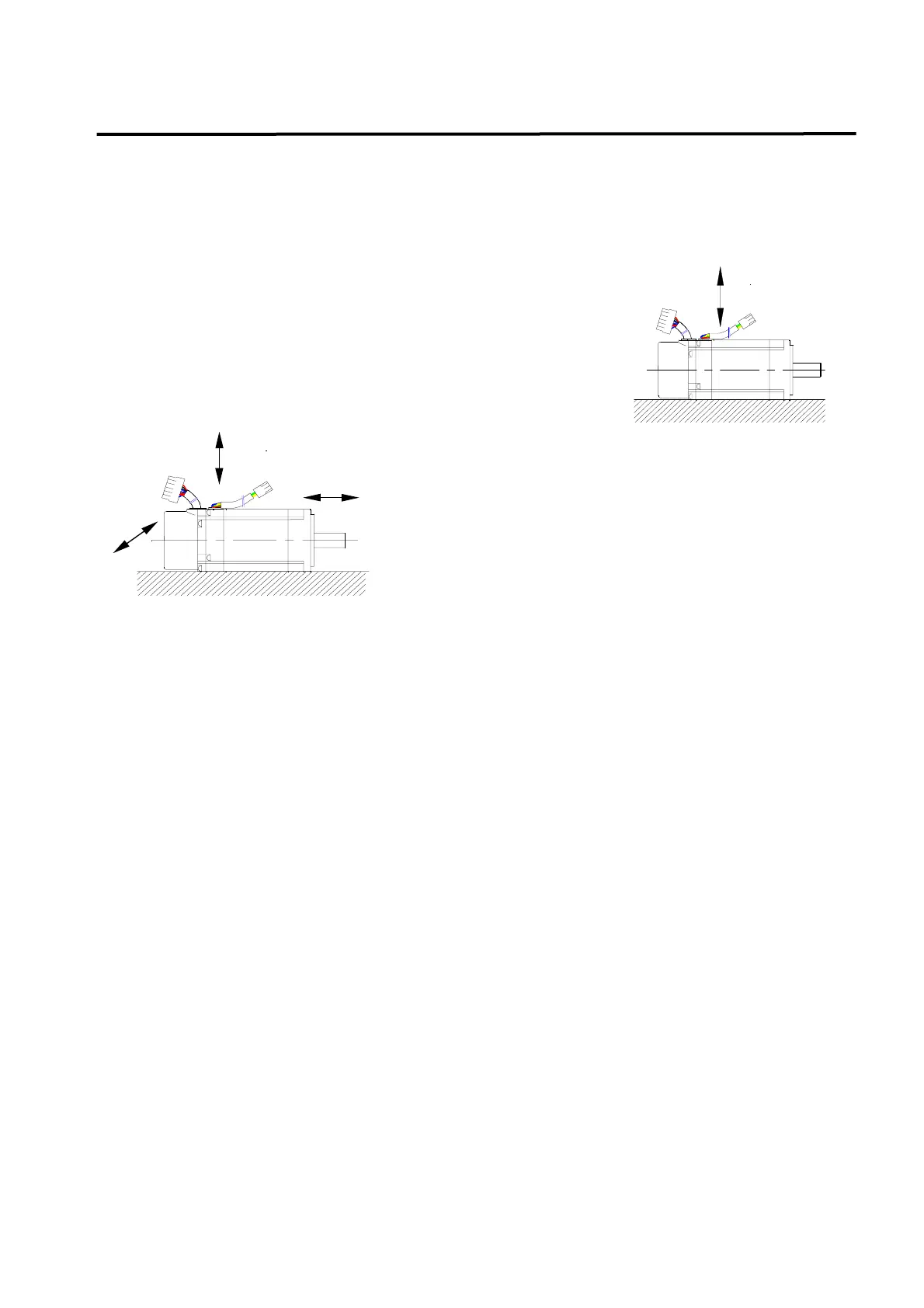

The drive withstands two times of impacts with an acceleration of
10G when up-and-down impacts are applied after setting the motor
shaft horizontally.
However, a precision detector is attached to the end of the shaft on
the opposite side of the load, take caution not to apply impact directly
to this end.
y Vibration resistance
The drive withstands a vibration acceleration of 2.0G when
vibration is applied in up and down, left and right, and front
and back directions after setting the motor shaft horizontally.
y Vibration grade
The vibration grade of the AC servo motor is V15 at the rated rpm.
y Direction of installation
- Motor can be installed horizontally or at the top or bottom of the shaft.
- Keep the motor cable downward.
- If the motor is installed vertically, install a cable trap so that oils or water do not flow into the
motor.
y Cable disconnection
- Take caution not to cause stress or damage to the cables.
- If the motor is used as a mobile motor, use flexible cables.
