Higen FDA6000C Series User Manual

Chapter 1. Checking and Handling
1-5
-

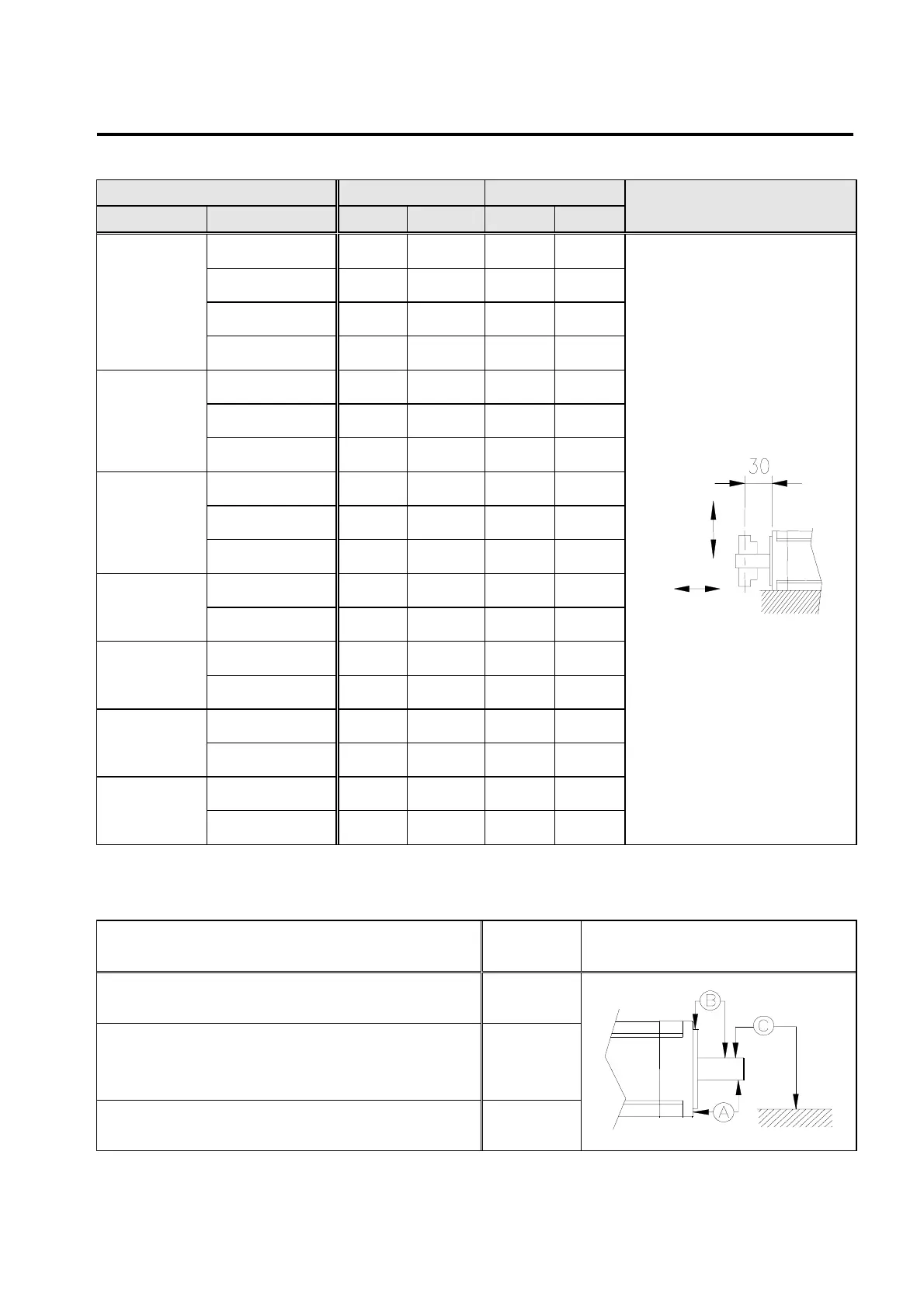

MOTOR MODEL RADIAL LOAD AXIAL LOAD
Series Type N Kgf N kgf
REFERENCE DIAGRAM
CN01~CN05 196 20 68 7
CN04A~CN10 245 25 98 10
CN09~CN30 686 70 343 35
CN
CN30A~CN50A 1470 150 490 50
KN03~KN07 245 25 98 10
KF06A~KN22 686 70 343 35
KN
KN22A~KN70 1470 150 490 50
TN05~TN17 686 70 343 35
TN20~TN75 1470 150 490 50
TN
TN110~TN150 1764 180 588 60
LN03~LN12 686 70 343 35
LN
LN12A~LN55 1470 150 490 50
KF08~KF15 686 70 343 35
KF
KF22~KF50 1470 150 490 50
TF05~TF13 686 70 343 35
TF
TF20~TF44 1470 150 490 50
LF03~LF09 686 70 343 35
LF
LF12~LF30 1470 150 490 50
Radial
Load
A
xial
Load
y Accuracy of attachments
The accuracies of the shaft and attachments of the AC servo motor are shown on the following
table.
Item
Accuracy
(T.I.R.)
Reference Diagram
Perpendicularity of flange attachment plane and
output shaft (A)
0.04mm
Eccentricity of flange fitting outer diameter (B) 0.04mm
Vibration of shaft end (C) 0.02mm
(Note) T.I.R : Total Indicator Reading
