Chapter 9. External View
9-6

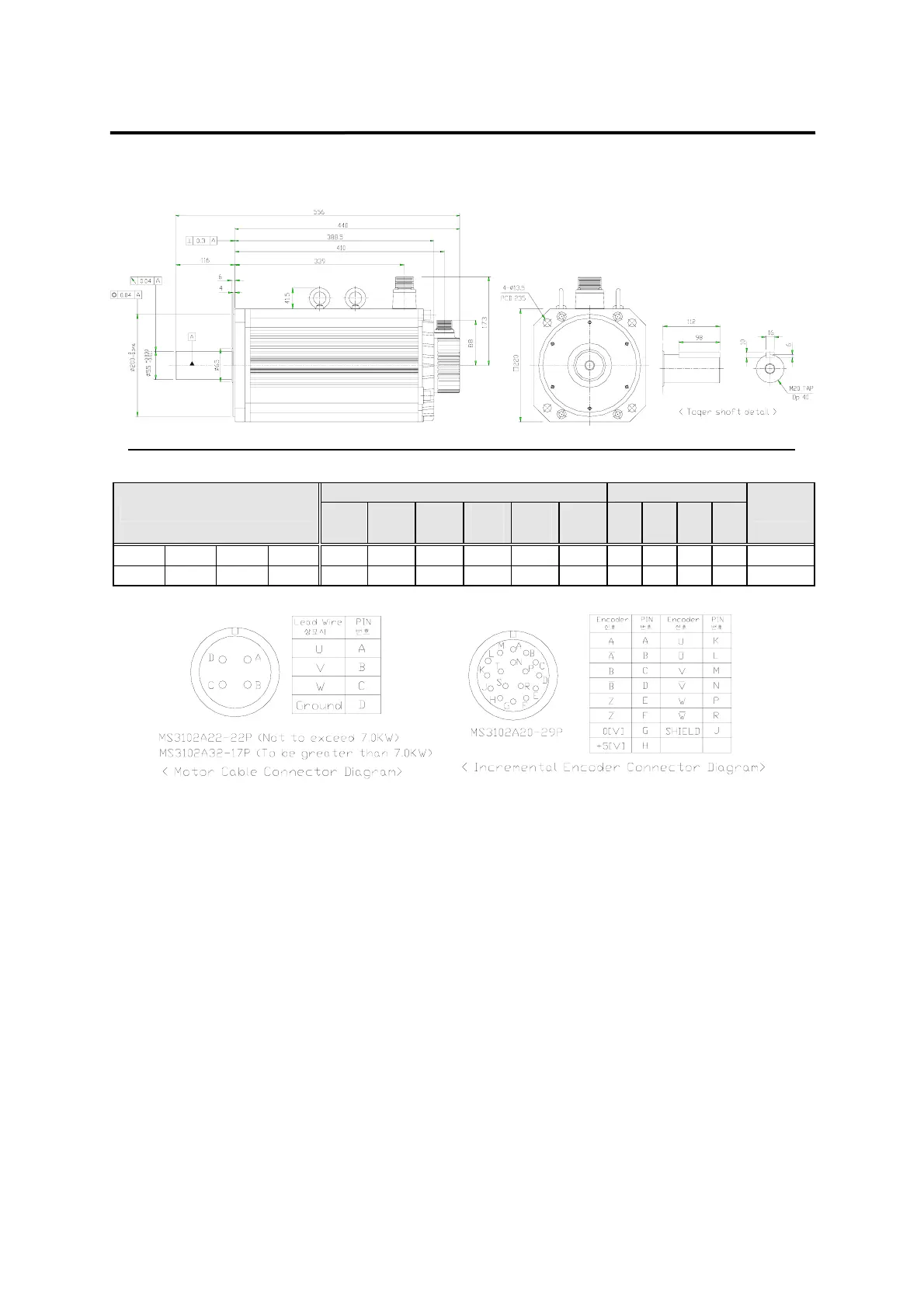

9.2.5 Flange 220 Series
External dimensions Key dimensions
Model
L LL LM
CB
1
CB
2
LK S T U W
Weight
TN110
556 440 388.5 343 410 98 55 10 6 16 84
TN150
461 345) 293.5 348 335 90 42 8 5 12 59
Straight Shaft(standard) Type (Dotted lines indicate position of brake-attached connectors)
