Hikmicro HABROK Series User Manual

Multi-spectrum Binocular User Manual
8

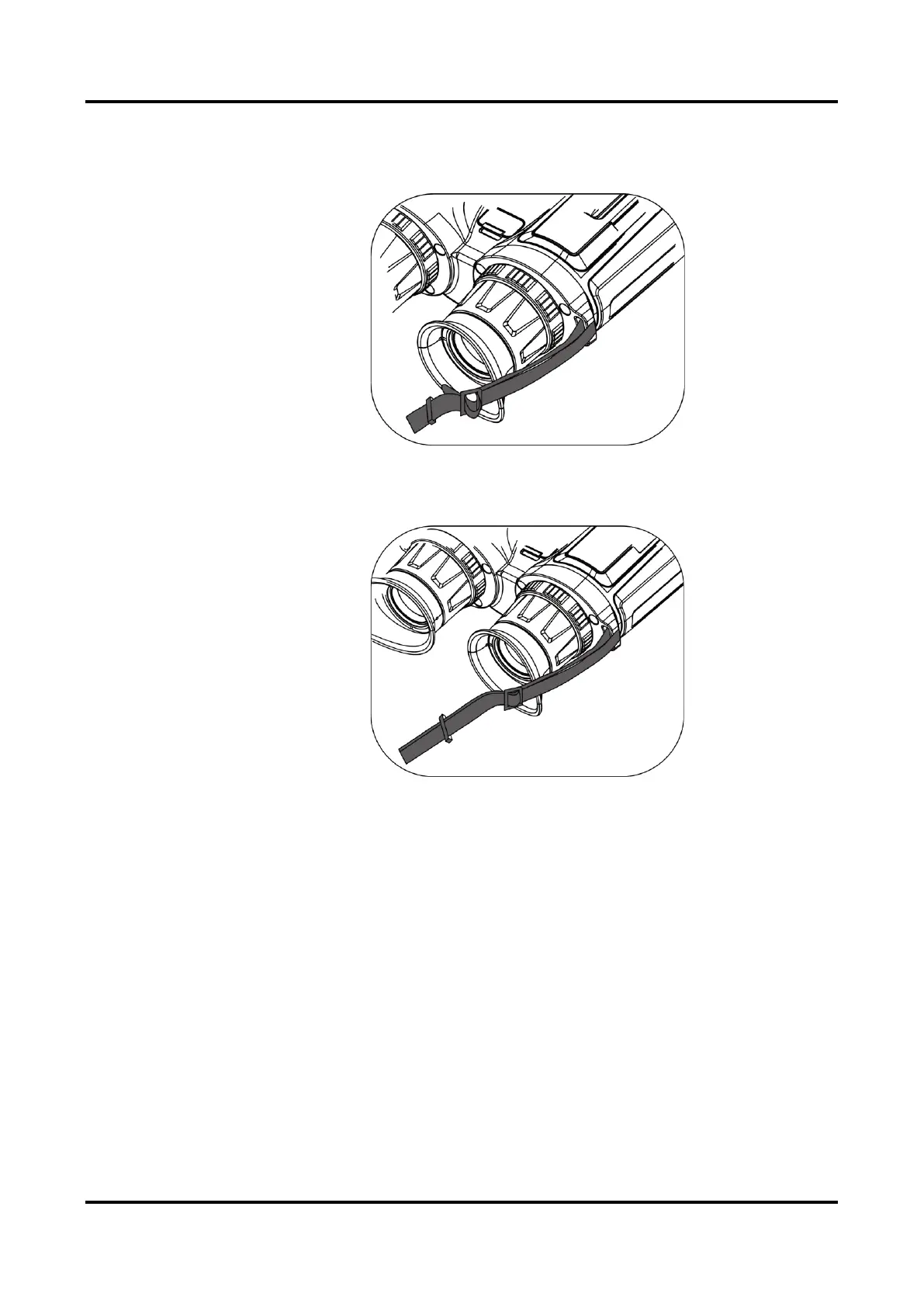

2. Thread the neck strap through the strap buckle and fasten the neck
strap, as is shown in the picture.
Figure 2-6 Thread Neck Strap through Strap Buckle
3. Thread the neck strap through the strap keeper.
Figure 2-7 Thread Neck Strap through Strap Keeper
4. Repeat above steps to finish mounting.
5. Adjust the length of neck strap as needed.
2.4 Mount Tripod Adapter
Steps
1. Insert the location column (1) to the location point (2).

Hikmicro HABROK Series Specifications

General

Frame Rate	50 Hz
Pixel Interval	12 μm
Aperture	F1.0
Laser Rangefinder	Yes
Laser Rangefinder Max. Measuring Range	1000 m
Wavelength	905 nm
Protection Level	IP67
Battery Type	Li-ion
Operating Time	6h
Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
