Panel Power Supply Input Nominal Range
Mains Supply Voltage AC 230V AC at 50Hz -15% +10%
PSU Rating 51VA 18.5V at 2.5A
Panel Power Supply Output Nominal Range
Output Voltage 15V DC 13.5-18V DC
Output Current 2.0A Continuous 2.5A peak, during battery charging
Power Supply Type A.
Fuses Value Type
230V Mains Fuse for mains terminals T500mA anti-surge slow blow 250V Ceramic
2.5 Engineer Keypad Connection

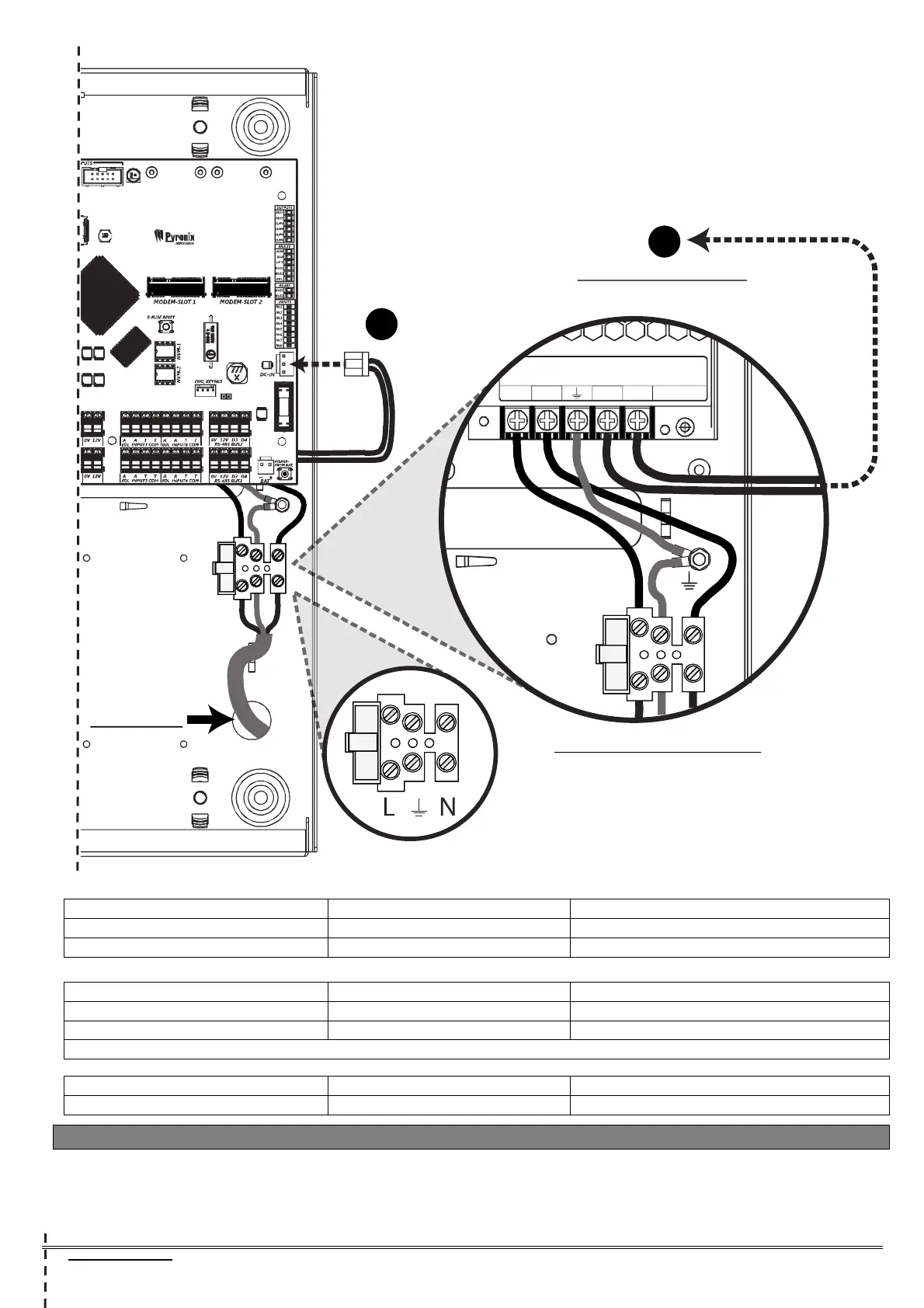

If required, any keypad can be connected to the 'Engineer Keypad' connections as shown below. This enables quick
access to the Engineer menu without having to walk to the nearest keypad.
Control Panel
L N -V +V
VIEW: PSU TERMINALS
(Underneath Main PCB)
A
A
Connects to DC-IN
(See Fig. A)
(DC-IN)
MAINS IN:
