EURO 280 Installation Manual
Page: 16

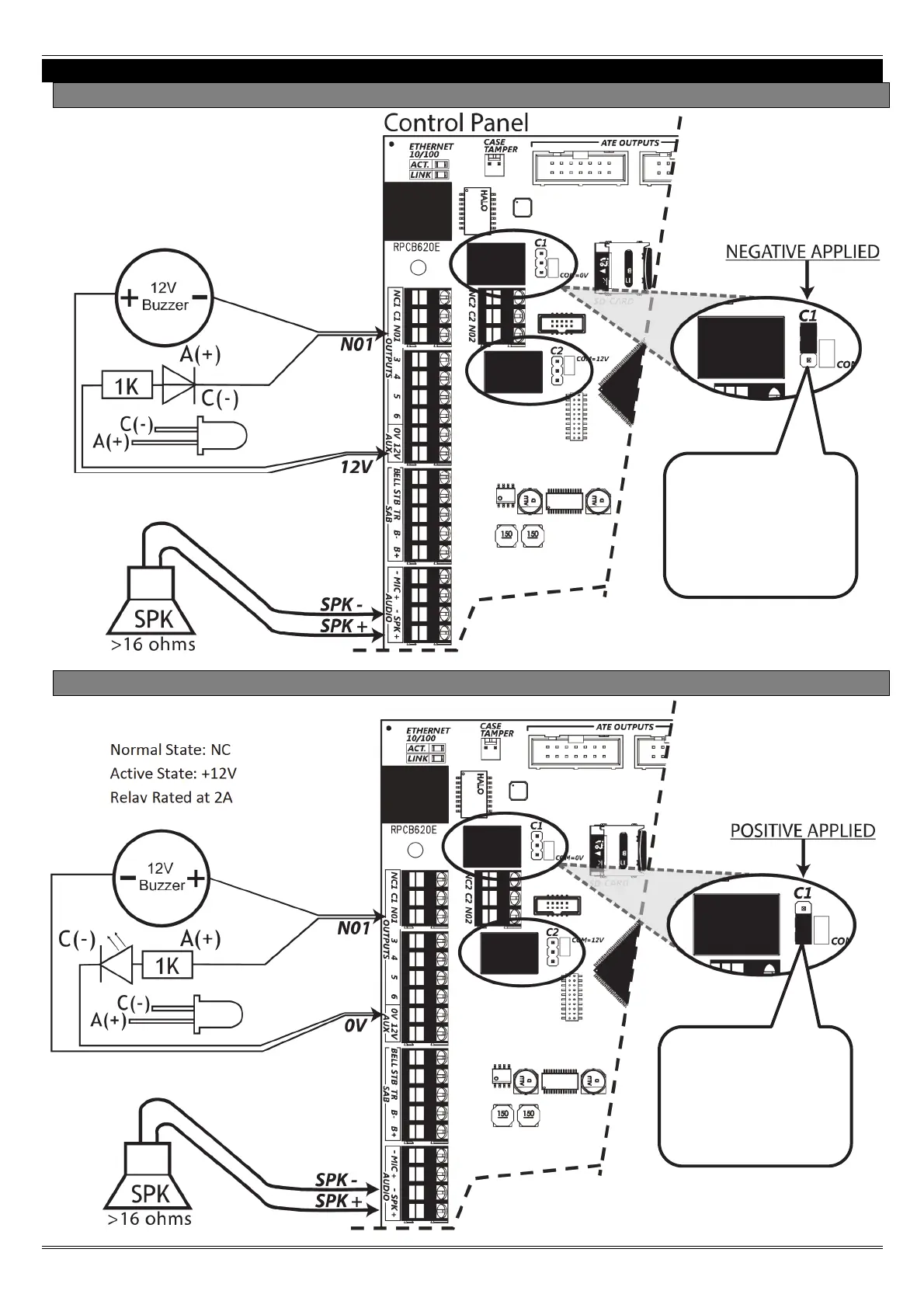

4. Output (PGM) Connections
4.1 Negative Applied Wiring
4.2 Positive Applied Wiring
Normal State: NC
Active State: 0V
Relay Rated at 2A
Normal State: NC
Active State: +12V
Relay Rated at 2A
Place the jumper /
link in the position
shown to set the
wiring to negative
applied.
Place the jumper /
link in the position
shown to set the
wiring to positive
applied.
