EURO 280 Installation Manual
Page: 40

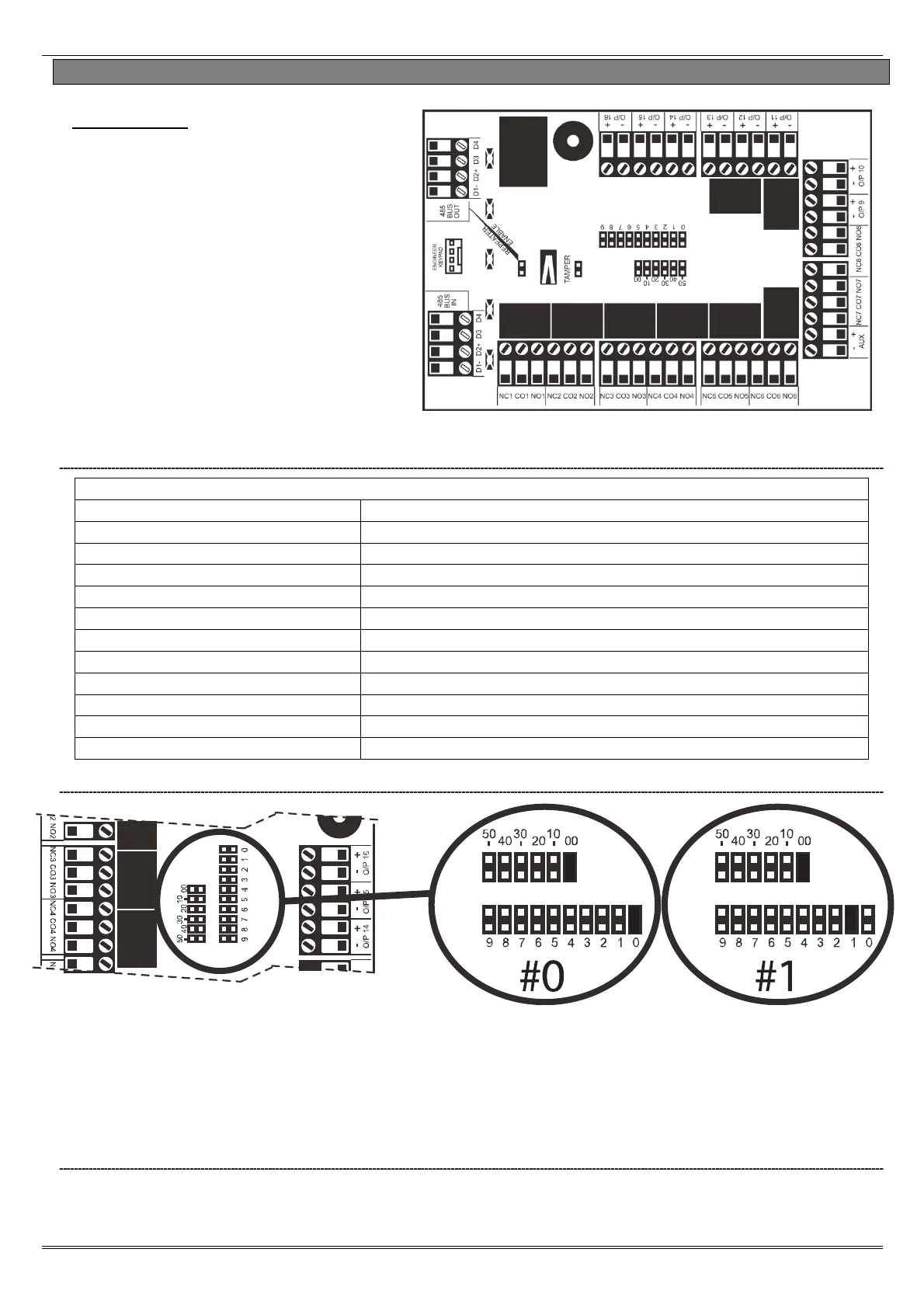

6.8 Connecting the Output Expander Module (EURO-OEM8R8T)
EURO-OEM8R8T
The EURO-OEM8R8T is an output expander that
supports 8 way relays and 8 transistor outputs.
The EURO 280 will support up to 16 output
expanders. See page: 4.
6.8.1 EURO-OEM8R8T Technical Specification
EURO-OEM8R8T (Output expander with 16 PGMs)
Supply Voltage 9-15V DC
Current Consumption 25mA, Max 300mA when all outputs are active
PGM1 to PGM16 Programmable
PGM1 to PGM8 Type Relay, 3A, max 30V
PGM1 to PGM8 Normal State Changeover NC & NO
PGM1 to PGM4 Active State Changeover NC & NO
PGM9 to PGM16 Type Open Collector
PGM9 to PGM16 Normal State Floating
PGM9 to PGM16 Active State 0V
Dimensions Plastic Box 173 x 125 x 32mm
Dimensions PCB 135 x 90 x 15mm
EN50131 Certified Grade 3
6.8.2 Addressing the EURO-OEM8R8T (From the Expander)
NOTE: The addressing is done by headers that represent the address. For example:
If a header is placed on 00, and 0, the address is 0.
If a header is placed on 00, and 9, the address is 9.
If a header is placed on 20, and 3, the address is 23 etc.
6.8.3 Adding the EURO-OEM8R8T (From the Engineer Menu)
Enter the Engineer menu and scroll to 'CHANGE OUTPUTS' and then 'Output Module Outputs' and press .
Please see the Programming Manual for more information.
