EURO 280 Installation Manual
Page: 42

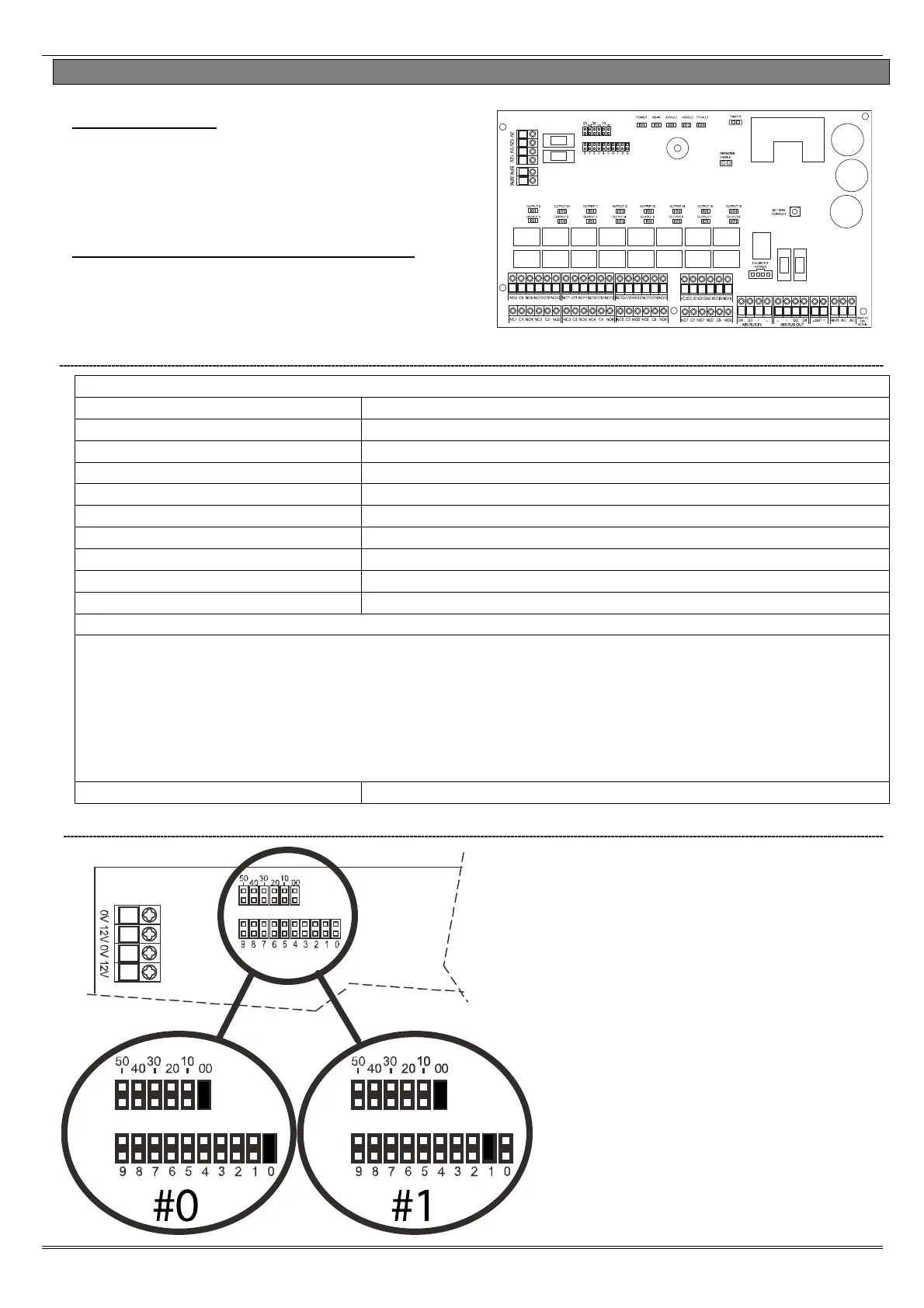

6.9 Connecting the Output Expander Module with PSU (EURO-OEM16R+PSU)
EURO-OEM16R+PSU
The EURO-OEM16R+PSU is an output expander that
supports 16 relays and has a built in 2.5A power supply.
The EURO 280 will support up to 16 output expanders. See
page: 4.
NOTE: The D2+ terminal must not be connected.
6.9.1 EURO-OEM16R+PSU Technical Specification
EURO-OEM16R/PSU (Output expander with 16 PGMs and Power Supply)
Supply Voltage 230VAC @ 50Hz
Current Consumption 25mA, Max 340mA when all outputs are active
PGM1 to PGM16 Programmable
PGM1 to PGM16 Type Relay, 3A, max 30V
PGM1 to PGM16 Normal State Changeover NC & NO
PGM1 to PGM16 Active State Changeover NC & NO
Power Supply Rating 2.0A Continuous and 2.5A in peak when charging battery
Transformer Rating 44VA
Dimensions Metal Box 390 x 205 x 100mm
Dimensions PCB 215 x 125 x 65mm
Front and rear tamper protected with one tamper switch
Front and rear tamper protected with one tamper switch
A 17Ah battery, will support a maximum load of 1350mA for a period of 12 hours.
EN50131-1:2006+A1:2009 Installations - Back up battery time = 30hrs providing that a mains fail signal is reported
to the ARC.
A 17Ah battery, will support a maximum load of 497mA for a period of 30 hours.
Installations which are not supported by an ARC mains fail reported signal = 60 hours.
A 17Ah battery, will support a maximum load of 248mA for a period of 60 hours.
EN50131 Certified Grade 3
6.9.2 Addressing the EURO-OEM16R+PSU (From the Expander)
EURO-OEM16R+PSU
(PCB)
NOTE: The addressing is done by headers
that represent the address.
For example:
If a header is placed on 00, and 0, the
address is 0.
If a header is placed on 00, and 9, the
address is 9.
If a header is placed on 10, and 6, the
address is 16 etc.
