6.5.7 Wiring Inputs on the EURO-ZEM8+ (Mark/Fault - Grade 3)

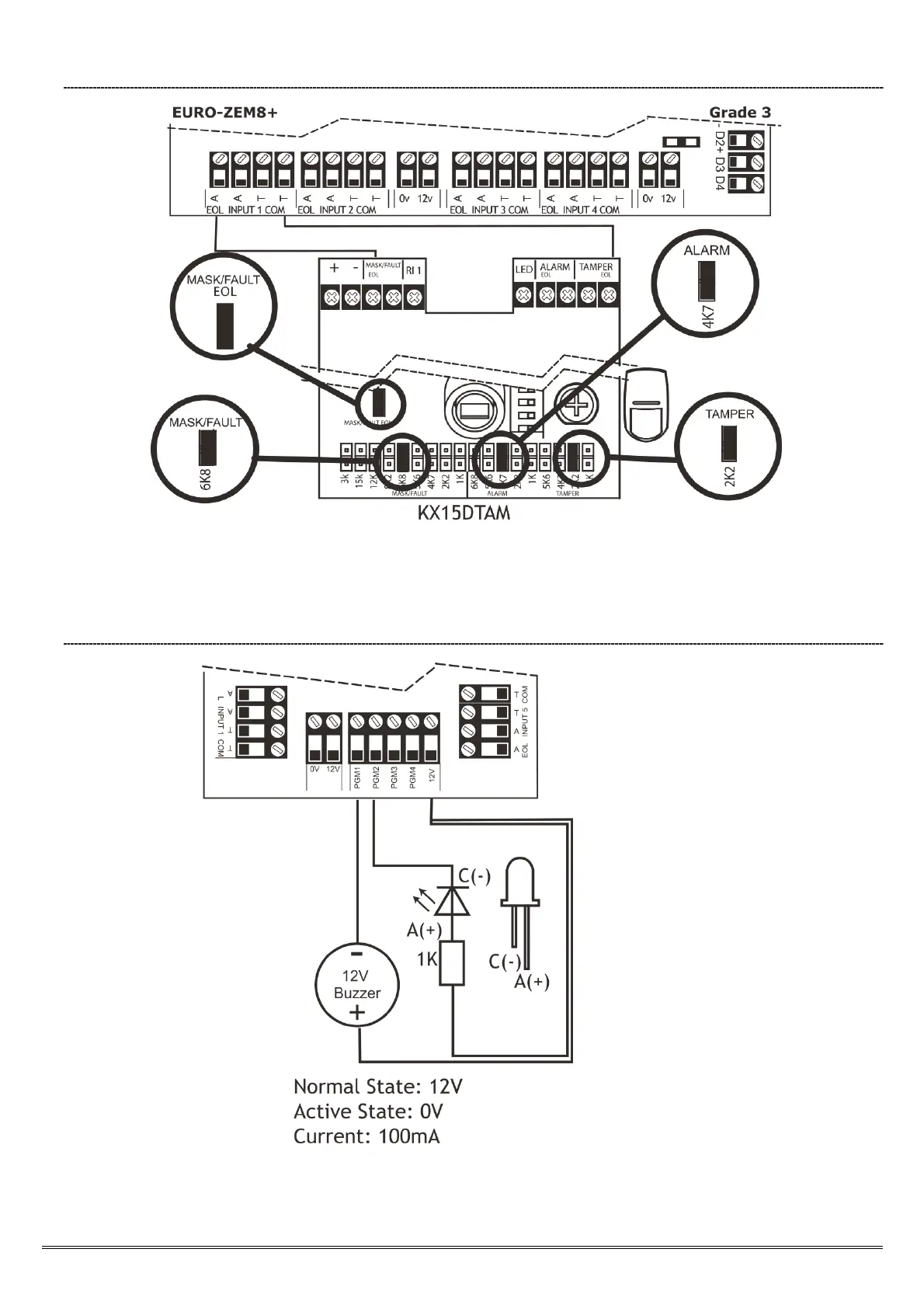

The above wiring example shows the connections for a Grade 3 KX15DTAM PIR.
6.5.8 Output Wiring on the EURO-ZEM8+
Normal State: 12V
Active State: 0V
Max Current: 100mA
