6.6.7 Wiring Inputs on the EURO-ZEM8+PSU (DEOL: Grade 3)

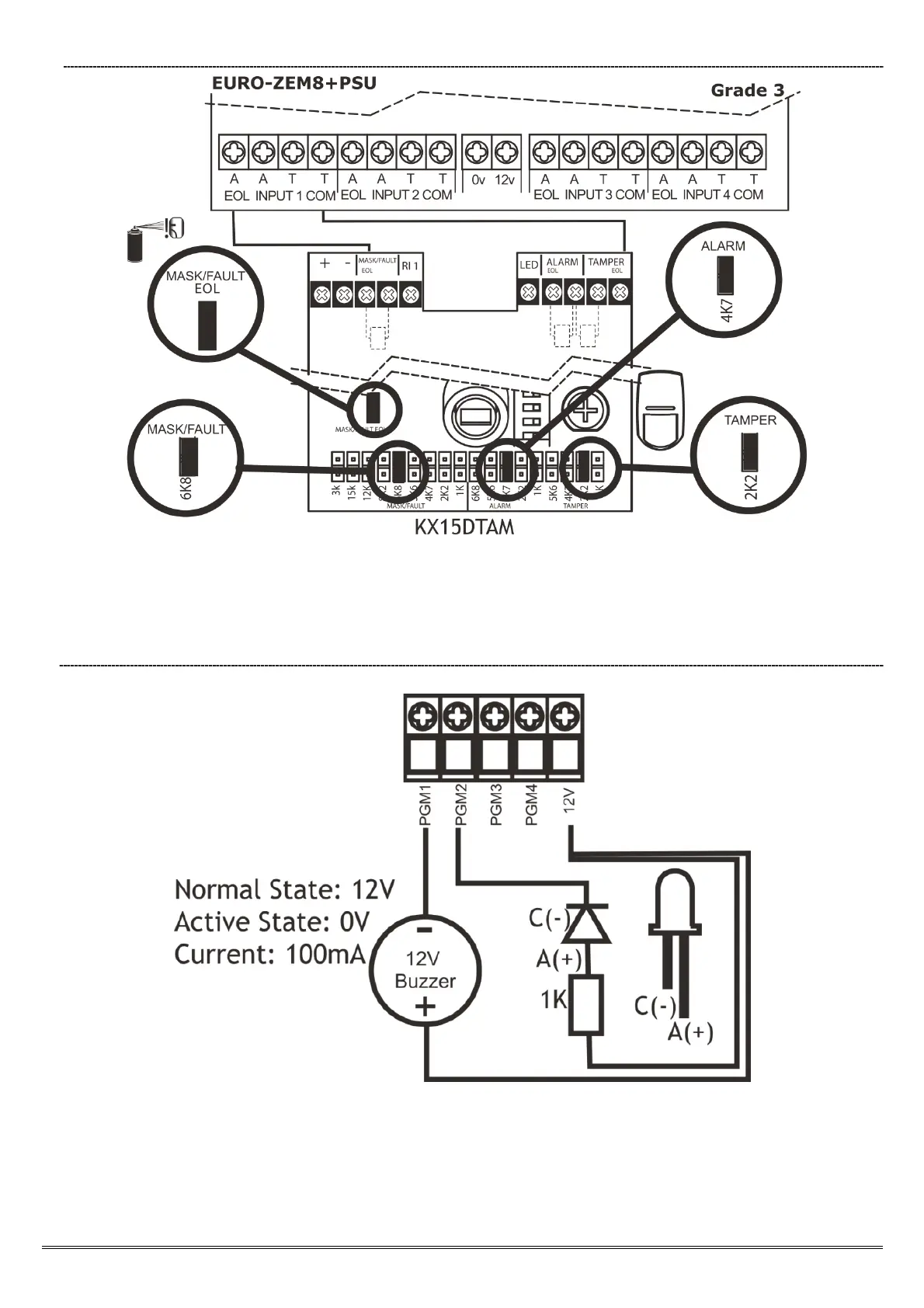

The above wiring example shows the connections for a Grade 3 KX15DTAM PIR.
6.6.8 Output Wiring on the EURO-ZEM8+PSU
