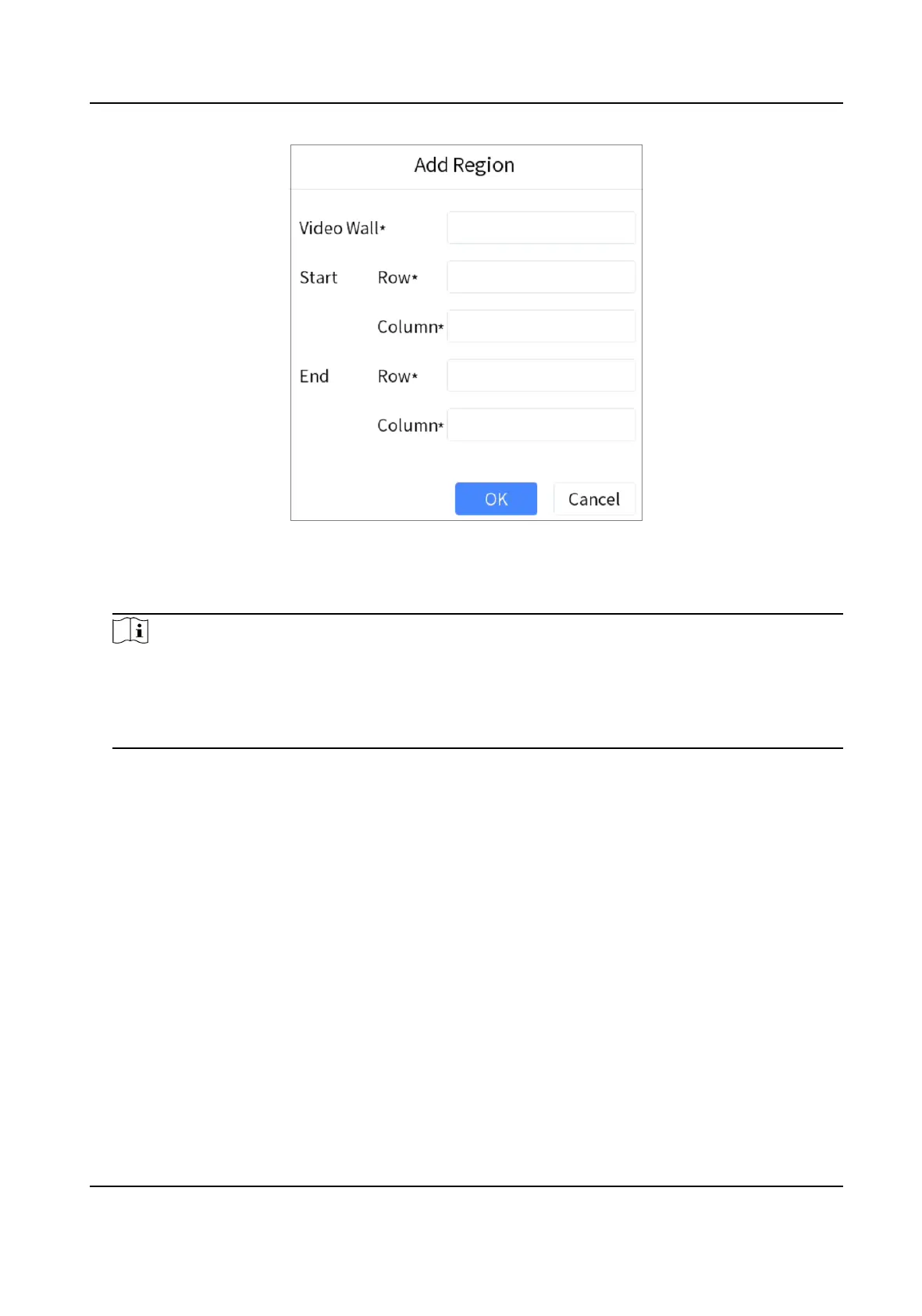

Figure 5-3 Add Region
3. Enter video wall ID, start and end coordinates.
4. Tap OK.
Note
• Up to 16 regions are supported.
• The maximum region
specicaon is 6 × 8.
• If you do not
congure the region, region 1 corresponds to video wall 1, region 2 corresponds
to video wall 2, region 16 corresponds to video wall 16 by default.
5.3.2 Video Wall Control
• Select a coordinate grid that has been linked with an output interface, and perform operaons
such as opening a window, closing a window, resizing a window, and dividing a window.
• Select a video wall to switch scenes and display the current layout.
• Switch the designated camera to the designated monitor or sub-window of the video wall.
• Do not support camera group.
For detailed steps, see Video Wall Control .
DS-1100KI(B) Network Keyboard Quick Start Guide
27

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
