User Manual of DS-7200/7300/8100 Series DVR
140

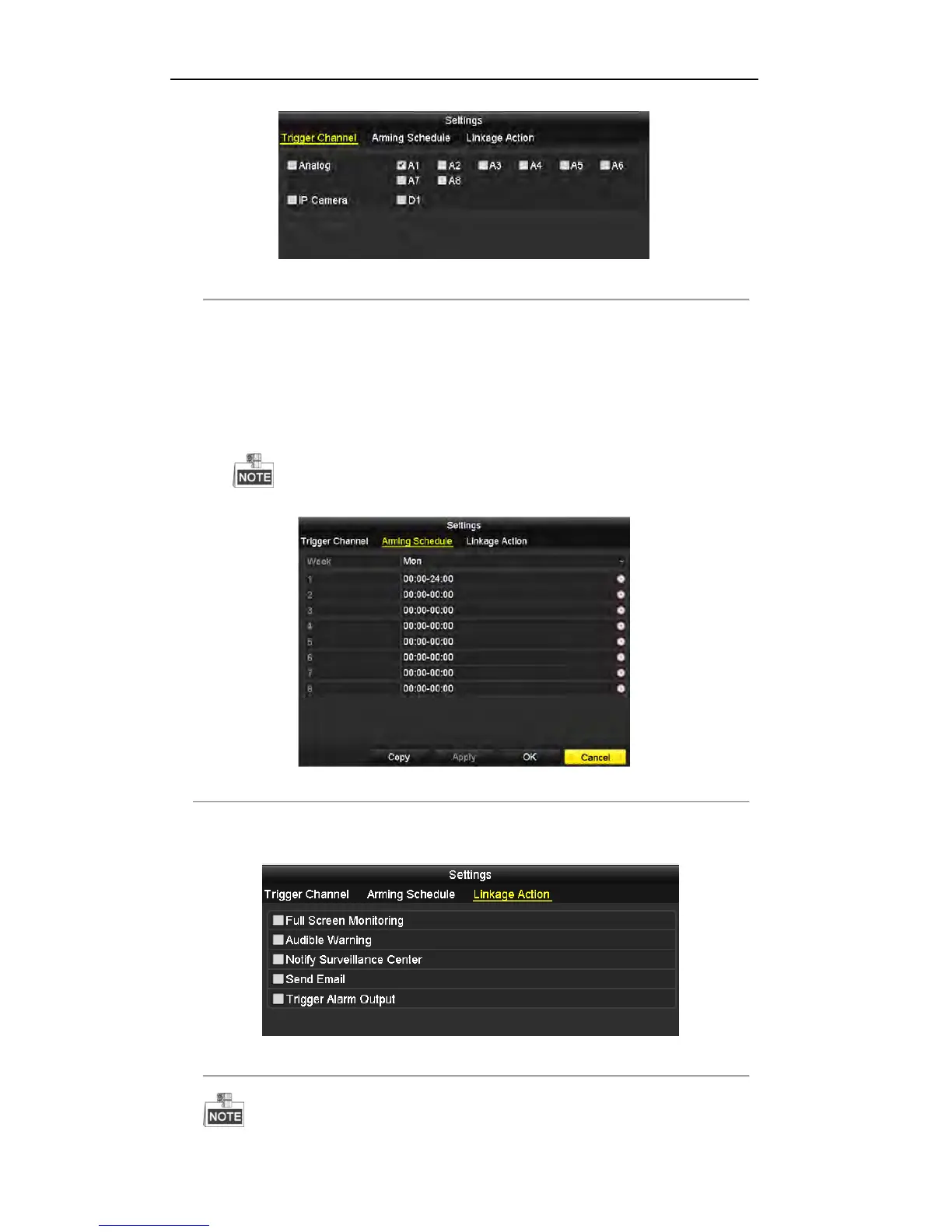

Figure 8. 3 Set Trigger Camera of Motion Detection
4. Set up arming schedule of the channel.
1) Select Arming Schedule tab to set the channel’s arming schedule.
2) Choose one day of a week and up to eight time periods can be set within each day.
3) Click Apply to save the arming settings of the selected day.
4) Repeat the above steps to set up arming schedule of other days of a week. You can also use Copy
button to copy an arming schedule to other days.
Time periods shall not be repeated or overlapped.
Figure 8. 4 Set Arming Schedule of Motion Detection
5. Click the Linkage Action tab to set up alarm response actions of motion alarm (please refer to Chapter
8.6).
Figure 8. 5 Set Alarm Response Actions of Motion Detection
