1.5 Rear Panel
DS-7204:

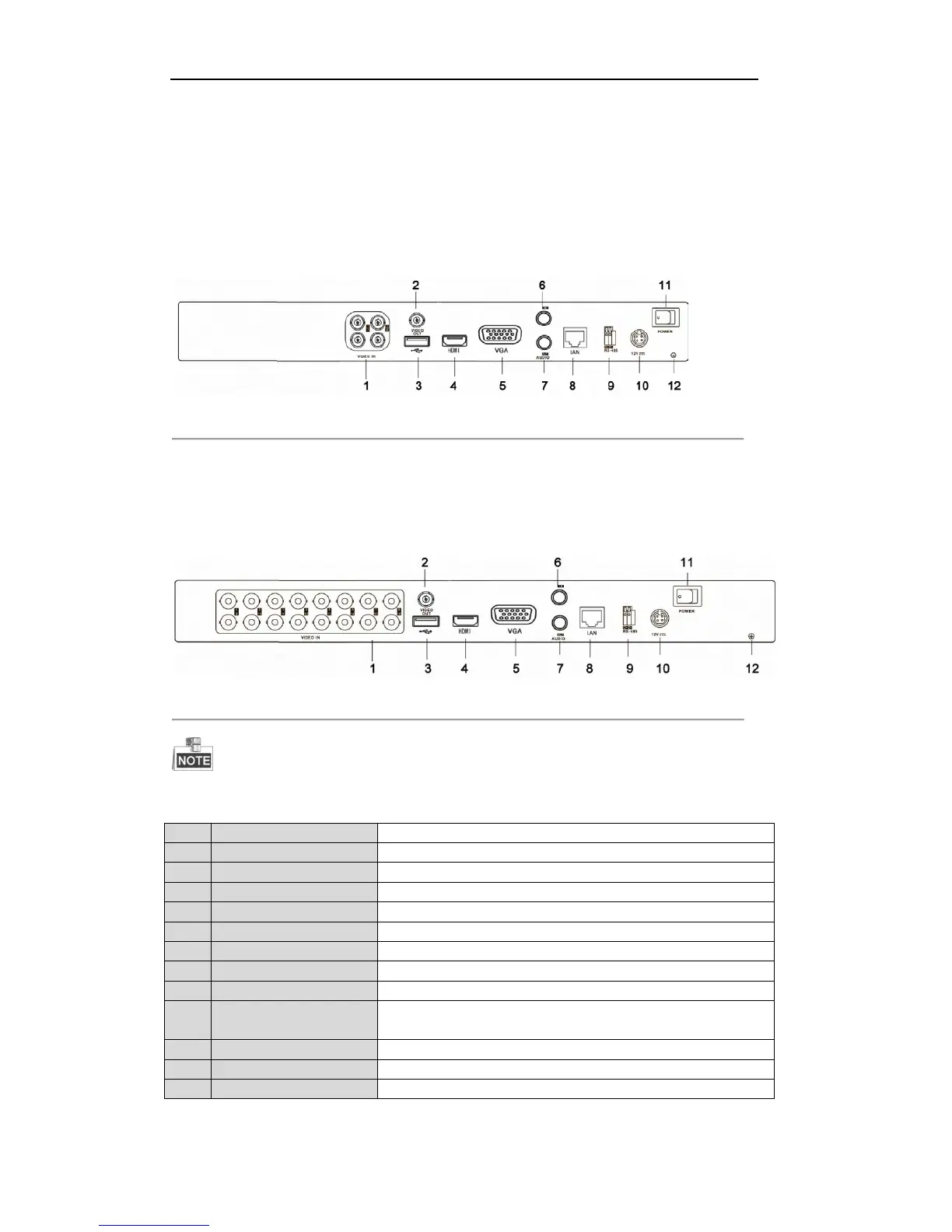

The rear panel of DS-7204 DVR is shown in Figure 1.6.
Figure 1.6 Rear Panel of DS-7204
DS-7216:
The rear panel of DS-7216 DVR is shown in Figure 1.7.
Figure 1.7 Rear Panel of DS-7216
The rear panel of DS-7208 provides 8 video input interfaces.
Table 1.7 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC connector for analog video input.
2
VIDEO OUT
BNC connector for video output.
3
USB Interface
Connects USB mouse or USB flash memory devices.
4
HDMI
HDMI video output.
5
VGA
DB15 connector for VGA output. Display local video output and menu.
6
AUDIO IN
RCA connector for audio input.
7
AUDIO OUT
RCA connector for audio output.
8
LAN Interface
RJ45 10M/100M Ethernet interface.
9
RS-485 Interface
Connector for RS-485 devices. Connect the D+ and D- terminals to T+
and T- of PTZ receiver respectively.
10
12V
12VDC power supply.
11
POWER
Switch for turning on/off the device.
12
GND
Ground (needs to be connected when DVR starts up).
