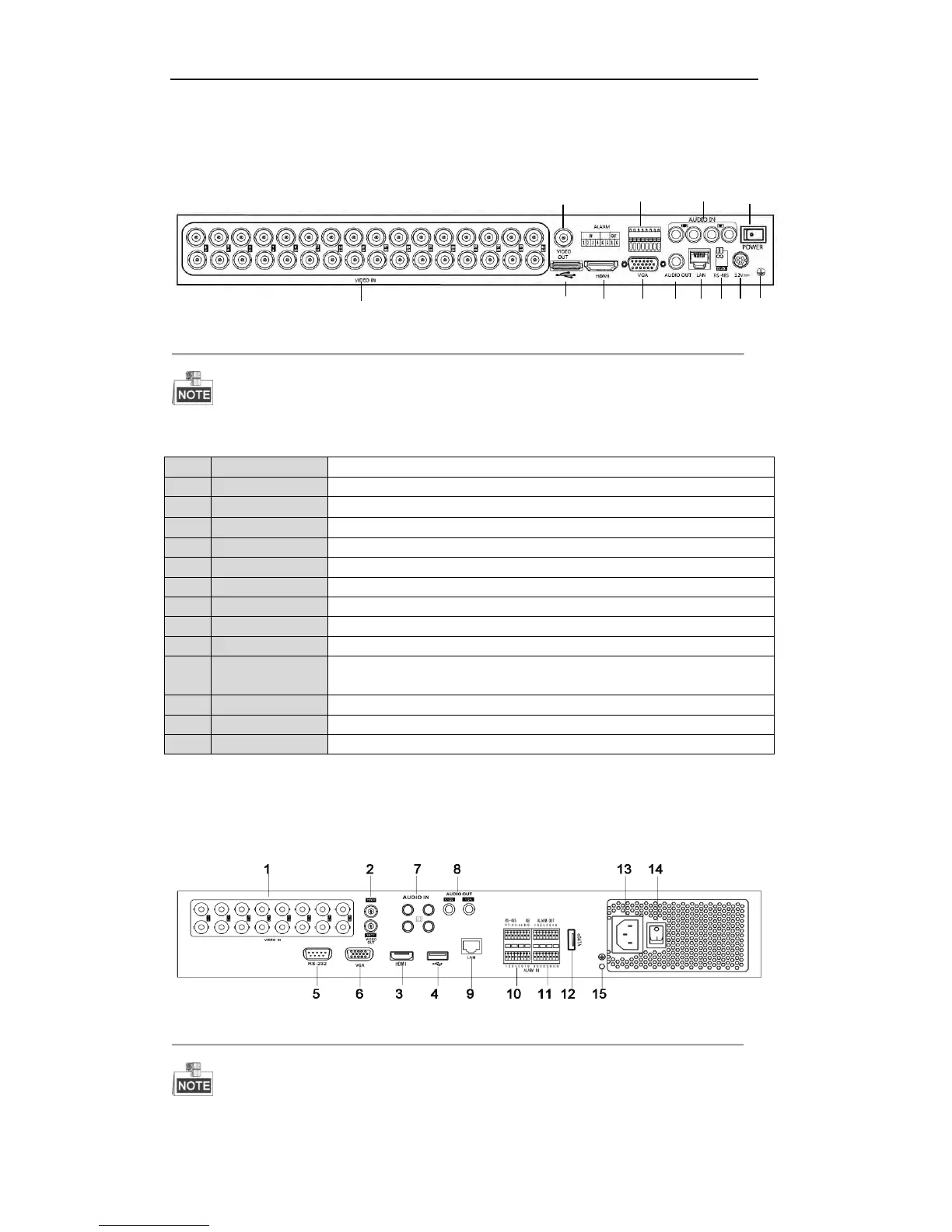

The rear panel of DS-7232 is shown in Figure 1.8.
1
2
3 4 5
6
7
8
9 10 11
12
13
Figure 1.8 Rear Panel of DS-7232
The rear panel of DS-7224 provides 24 video input interfaces.
Table 1.8 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC connector for analog video input.
2
VIDEO OUT
BNC connector for video output.
3
USB Interface
Connects USB mouse or USB flash memory devices.
4
HDMI
HDMI video output.
5
VGA
DB15 connector for VGA output. Display local video output and menu.
6
AUDIO IN
RCA connector for audio input.
7
AUDIO OUT
RCA connector for audio output.
8
Alarm In/Out
Connector for alarm input/output.
9
LAN Interface
RJ45 10M / 100M / 1000M Ethernet interface.
10
RS-485 Interface
Connector for RS-485 devices. Connect the D+ and D- terminals to R+ and R-
terminals of PTZ receiver respectively.
11
12V
12VDC power supply.
12
POWER
Switch for turning on/off the device.
13
GND
Ground(needs to be connected when DVR starts up)
DS-7316:
The rear panel of DS-7316 DVR is shown in Figure 1.9.
Figure 1.9 Rear Panel of DS-7316
The rear panel of DS-7304/DS-7308 provides 4/8 video input interfaces.
