Table 1.9 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC connector for analog video input.
2
MAIN VIDEO OUT
BNC connector for video output.
SPOT VIDEO OUT
BNC connector for spot video output.
3
HDMI
HDMI video output.
4
USB Interface
Connects USB mouse or USB flash memory devices.
5
RS-232
Connector for RS-232 devices.
6
VGA
DB15 connector for VGA output. Display local video output and menu.
7
AUDIO IN
RCA connector for audio input.
8
AUDIO OUT
RCA connector for audio output.
9
LAN Interface
RJ45 10M/100M/1000M Ethernet interface.
10
RS-485 Interface
Connector for RS-485 devices. Connect the D+ and D- terminals to R+ and
R- terminals of PTZ receiver respectively.
11
Alarm In/Out
Connector for alarm input/output.
12
eSATA
Connects external SATA HDD, DVD-R/W.
13
100~240VAC
100~240VAC power supply.
14
POWER
Switch for turning on/off the device.
15
GND
Ground (needs to be connected when DVR starts up)

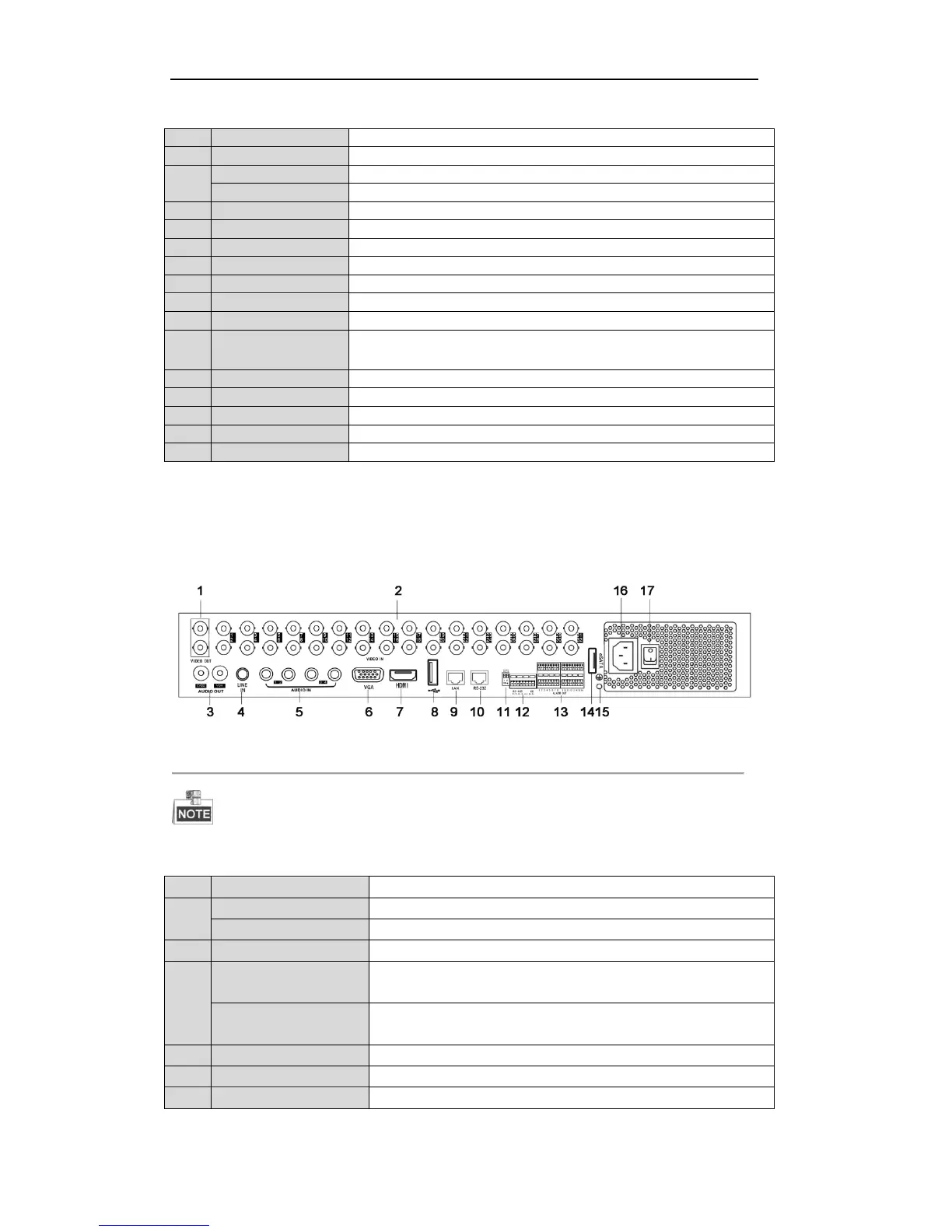

DS-7332:
The rear panel of DS-7332 DVR is shown in Figure 1.10.
Figure 1.10 Rear Panel of DS-7332
DS-7324 provides 24 video input interfaces on the rear panel.
Table 1.10 Description of Rear Panel
No.
Item
Description
1
MAIN VIDEO OUT
BNC connector for video output.
SPOT VIDEO OUT
BNC connector for spot video output.
2
VIDEO IN
BNC connector for analog video input.
3
CVBS AUDIO OUT
RCA connector for audio output. This connector is synchronized with
CVBS video output.
VGA AUDIO OUT
RCA connector for audio output. This connector is synchronized with
VGA video output.
4
LINE IN
RCA connector for two-way audio input.
5
AUDIO IN
RCA connector for audio input.
6
VGA
DB15 connector for VGA output. Display local video output and menu.
