User Manual of DS-7200/7300/8100 Series DVR
28
7
HDMI
HDMI video output.
8
USB Interface
Connects USB mouse or USB flash memory devices.
9
LAN Interface
RJ45 10M/100M/1000M Ethernet interface.
10
RS-232
Connector for RS-232 devices.
11
Termination Switch
RS-485 termination switch. Up position is not terminated.
Down is terminated with 120Ω resistance.
12
RS-485 Interface
Connector for RS-485 devices. Connect the T+ and T- terminals to the
R+ and R- terminals of PTZ receiver respectively.
KB
Connect the D+ and D- terminals to Ta and Tb terminals of the controller.
For cascading devices, the first DVR’s D+ and D- terminals should be
connected with the D+ and D- terminals of the next DVR.
13
Alarm In/Out
Connector for alarm input/output.
14
eSATA
Connects external SATA HDD, DVD-R/W.
15
GND
Ground(needs to be connected when DVR starts up)
16
100~240VAC
100~240VAC power supply.
17
POWER
Switch for turning on/off the device.
DS-8100:

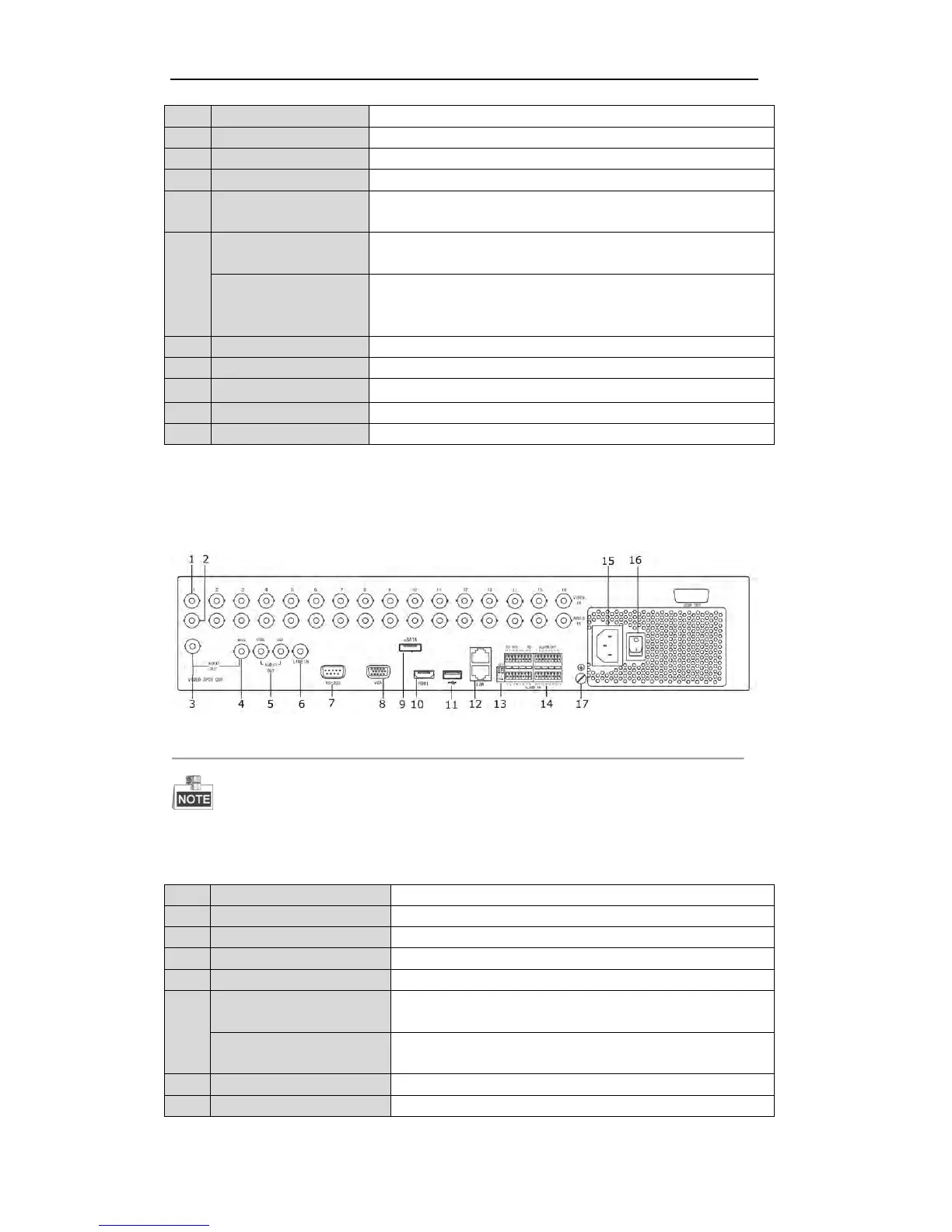

The rear panel of DS-8116 DVR is shown in Figure 1.11.
Figure 1.11 Rear Panel of DS-8116
DS-8104/DS-8108 model provides 4/8 video and audio input interfaces on the rear panel and one LAN
network interface.
Table 1.11 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC connector for analog video input.
2
AUDIO IN
BNC connector for audio input.
3
SPOT VIDEO OUT
BNC connector for spot video output.
4
MAIN VIDEO OUT
BNC connector for main video output.
5
CVBS AUDIO OUT
RCA connector for audio output. This connector is synchronized with
CVBS video output.
VGA AUDIO OUT
RCA connector for audio output. This connector is synchronized with
VGA video output.
6
LINE IN
RCA connector for two-way audio input.
7
RS-232
Connector for RS-232 devices.
