User Manual of DS-7200/7300/8100 Series DVR
142
8.2 Setting Sensor Alarms
This section is available for DS-7224/7232, DS-7300, DS-8100 and HDVR models only.
Purpose:
You can set handling method of an external sensor alarm.
Steps:
1. Enter Alarm Settings interface and select an alarm input.
Menu> Configuration> Alarm

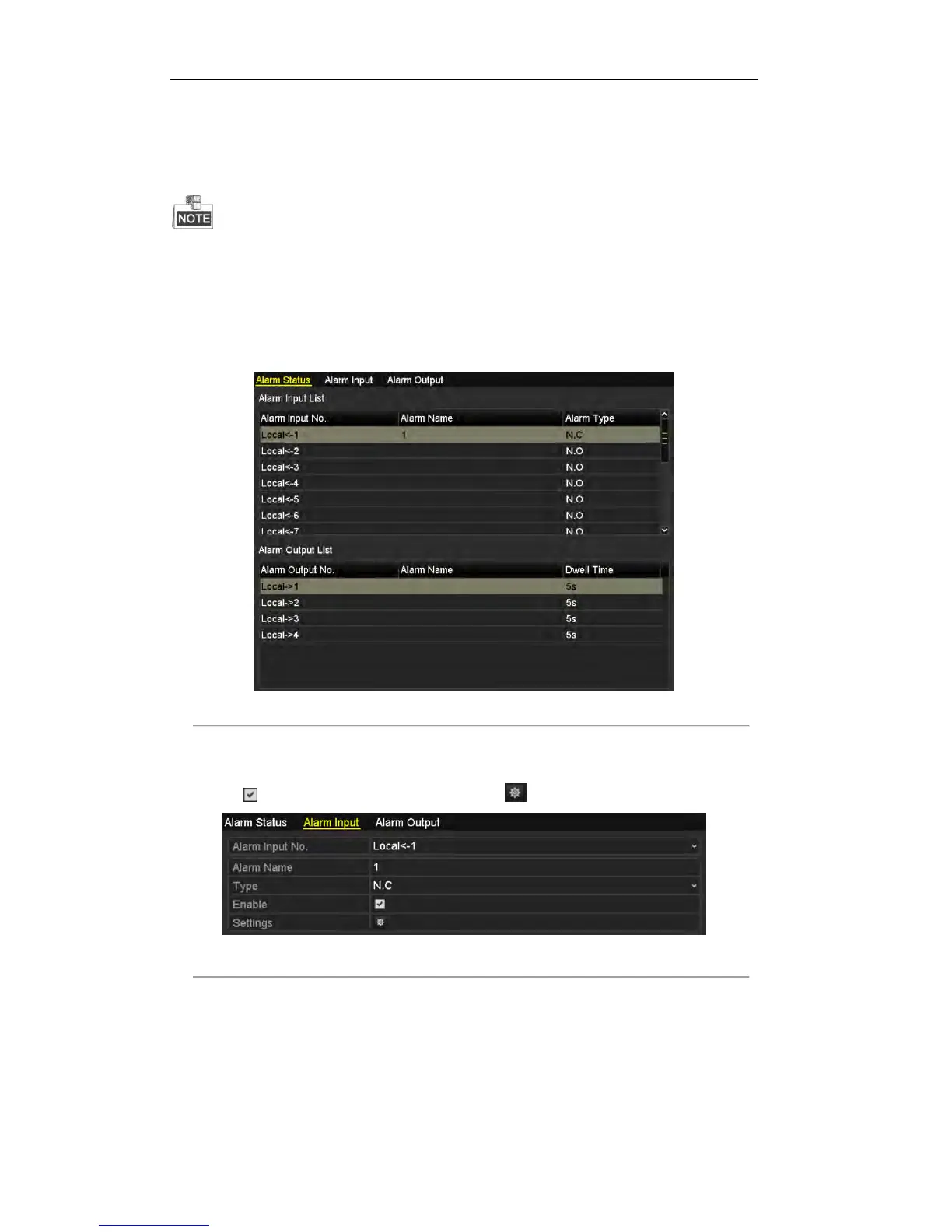

Figure 8. 7 Alarm Status Interface
2. Select Alarm Input tab to enter Alarm Input Settings interface and set the handling method of the
selected alarm input.
Check checkbox to enable the alarm input and click to set up its alarm response actions.
Figure 8. 8 Alarm Input Settings Interface
3. Select Trigger Channel tab and select one or more channels which will start to record or become
full-screen monitoring when an external alarm is input. Click Apply to save the settings.
4. Select Arming Schedule tab to set the channel’s arming schedule.
Choose one day of a week and up to eight time periods can be set within each day. Set up arming
schedule of other days of a week. You can also use Copy to copy an arming schedule to other days.
Click Apply to save the settings.
