Network Video Recorder User Manual
174

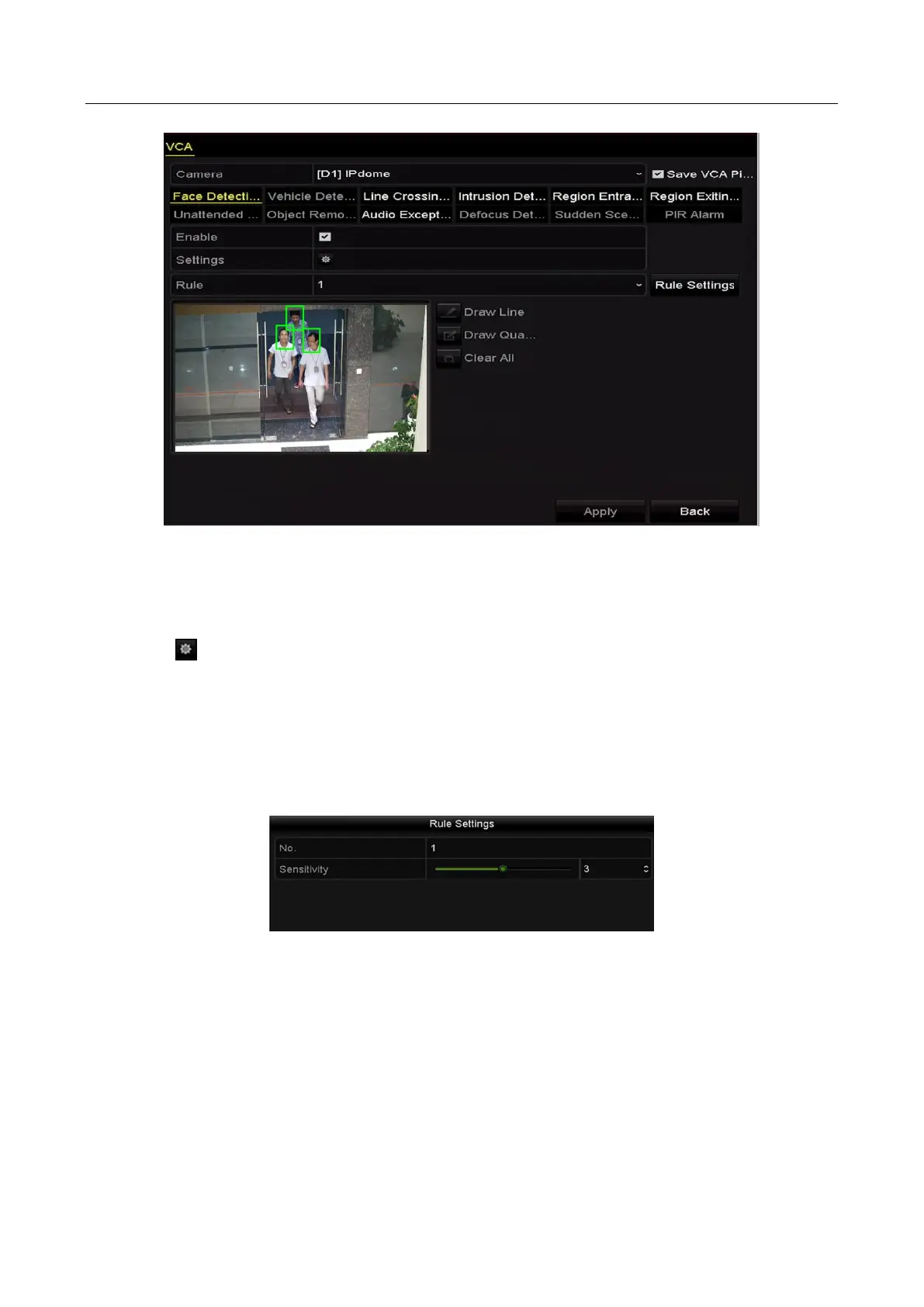

Figure 10-1 Face Detection
Step 3 Select the VCA detection type to Face Detection.
Step 4 Check the Enable checkbox to enable this function.
Step 5 Click to enter the face detection settings interface. Configure the trigger channel,
arming schedule and linkage action for the face detection alarm. Please refer to step3~step5
of Chapter 8.1 Setting Motion Detection Alarm for detailed instructions.
Step 6 Click the Rule Settings button to set the face detection rules. You can click-and-drag the
slider to set the detection sensitivity.
Sensitivity: Range [1-5]. The higher the value is, the more easily the face can be detected.
Figure 10-2 Set Face Detection Sensitivity
Step 7 Click Apply to activate the settings.
