Network Video Recorder User Manual
218

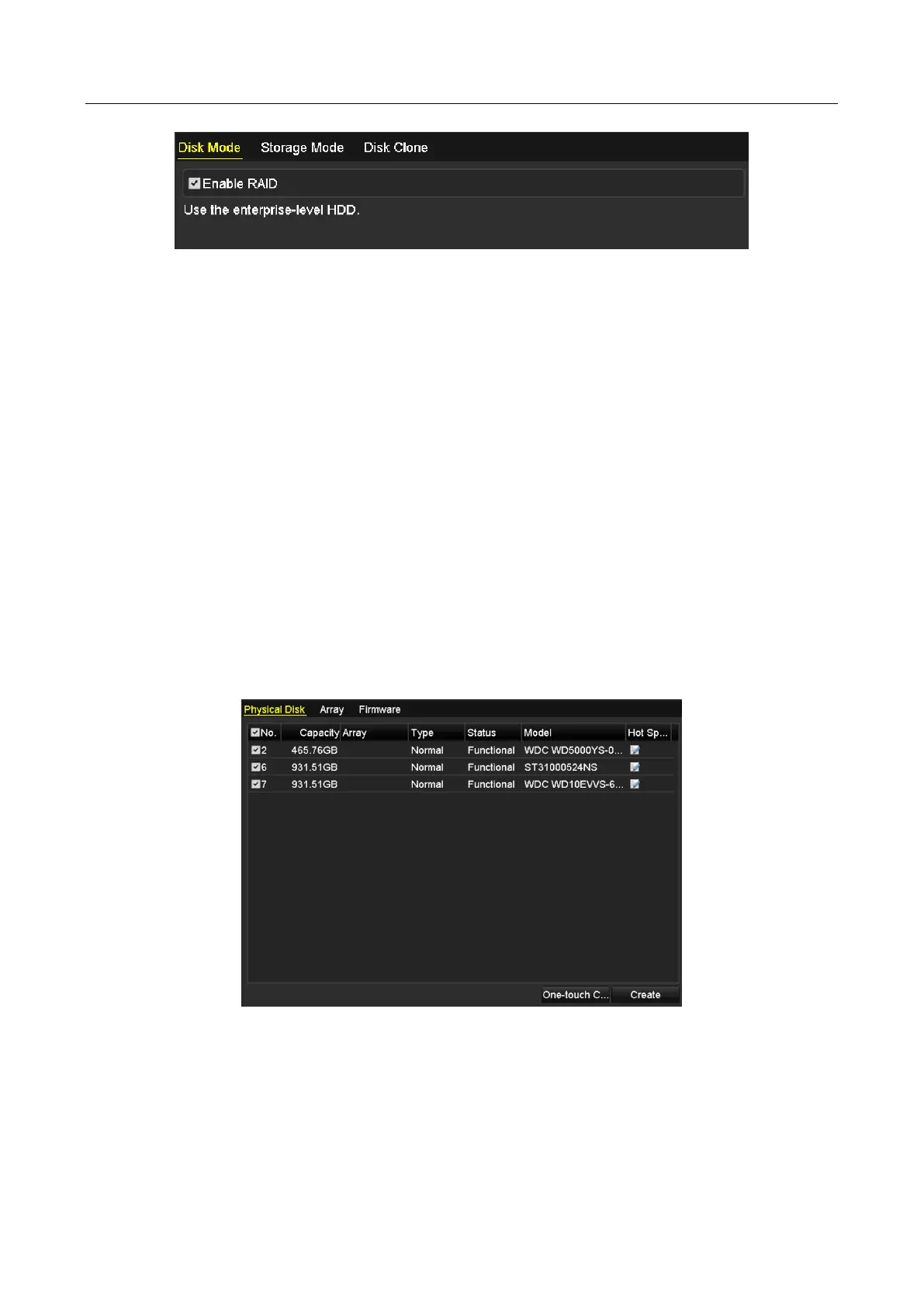

Figure 13-2 Enable RAID Interface
Step 2 Check the checkbox of Enable RAID.
Step 3 Click the Apply button to save the settings.
13.1.3 One-touch Configuration
Purpose:
Through one-touch configuration, you can quickly create the disk array. By default, the array type
to be created is RAID 5.
Before you start:
The RAID function should be enabled, please refer to the Chapter 13.1.1 for details.
As the default array type is RAID 5, please install at least 3 HDDs in you device.
If more than 10 HDDs are installed, 2 arrays can be configured.
Step 1 Enter the RAID configuration interface.
Menu > HDD > RAID
Figure 13-3 Physical Disk Interface
Step 2 Check the checkbox of corresponding HDD No. to select it.
Step 3 Click the One-touch Create button to enter the One-touch Array Configuration interface.
