Network Video Recorder User Manual
219

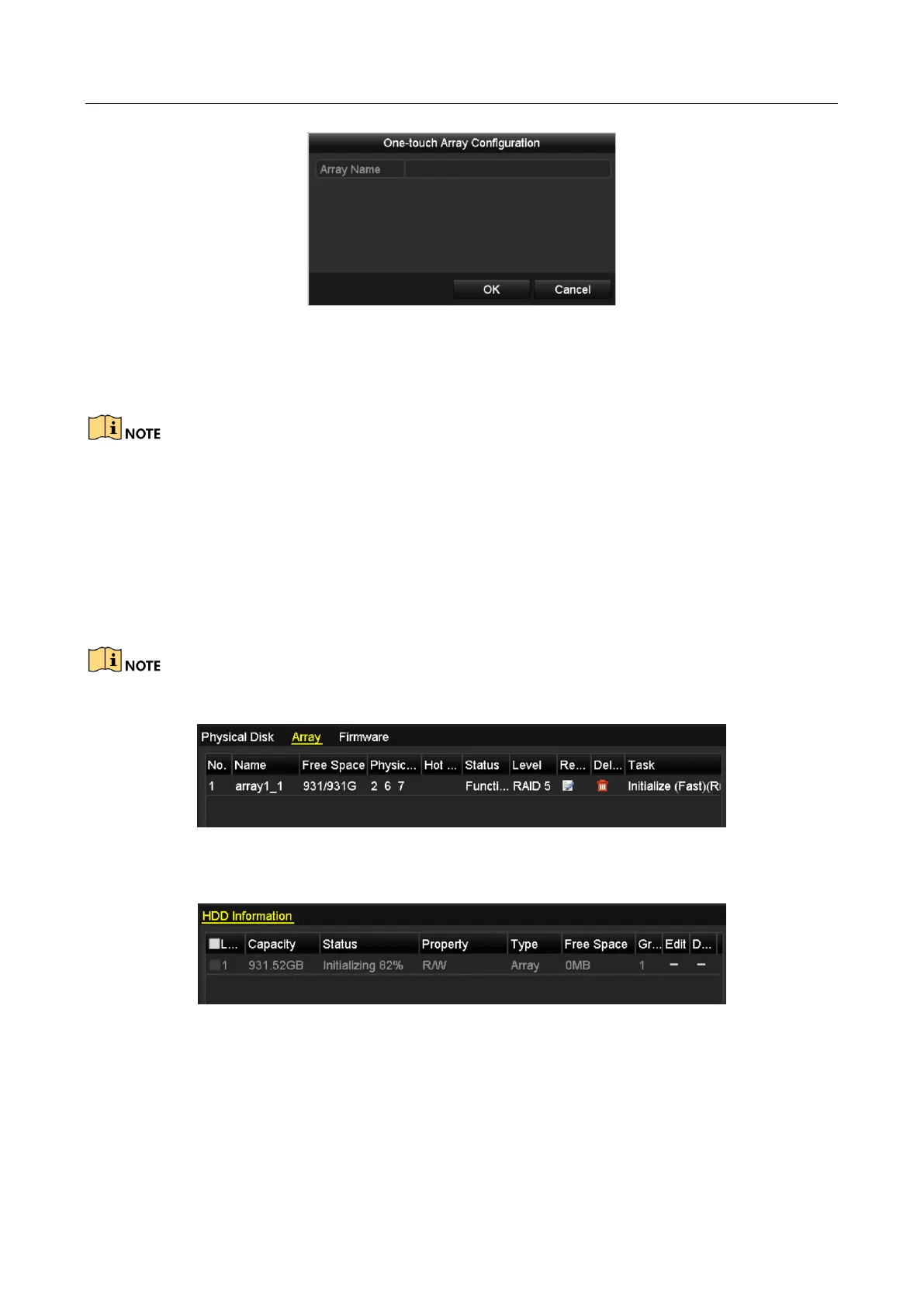

Figure 13-4 One-touch Array Configuration
Step 4 Edit the array name in the Array Name text filed and click OK button to start configuring
array.
If you install 4 HDDs or above for one-touch configuration, a hot spare disk will be set by default. It
is recommended to set hot spare disk for automatically rebuilding the array when the array is
abnormal.
Step 5 When the array configuration is completed, click OK button in the pop-up message box to
finish the settings.
Step 6 You can click Array tab to view the information of the successfully created array.
By default, one-touch configuration creates an array and a virtual disk.
Figure 13-5 Array Settings Interface
Step 7 A created array displays as an HDD in the HDD information interface.
Figure 13-6 HDD Information Interface
13.1.4 Manually Creating Array
Purpose:
You can manually create the array of RAID 0, RAID 1, RAID 5, RAID6 and RAID 10.
