HIKVISION DS-7608NI-I2/8P User Manual

Network Video Recorder User Manual
206

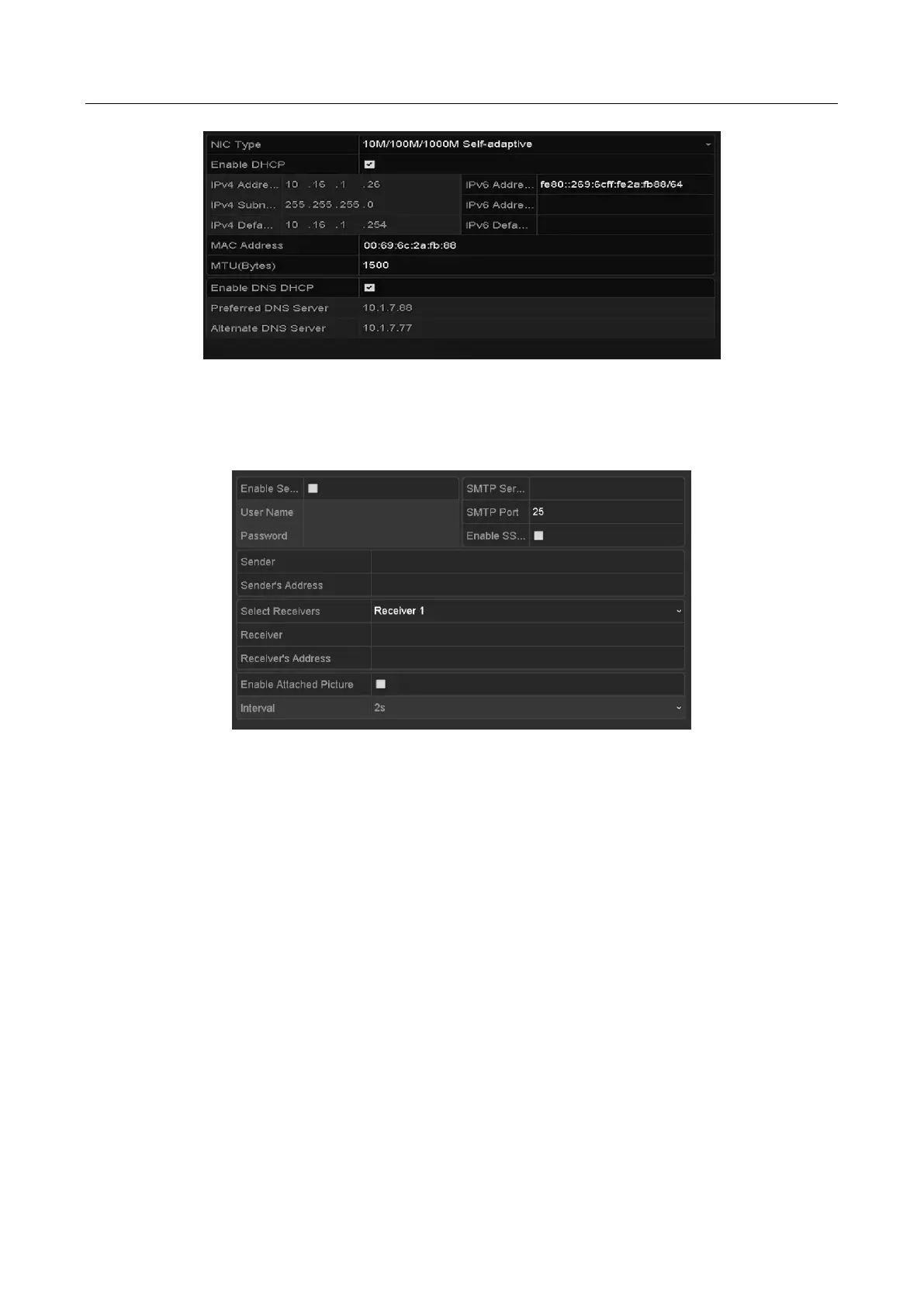

Figure 12-16 Network Settings Interface
Step 3 Click Apply to save the settings.
Step 4 Select the Email tab to enter the Email Settings interface.
Figure 12-17 Email Settings Interface
Step 5 Configure the following Email settings:
Enable Server Authentication (optional): Check the checkbox to enable the server
authentication feature.
User Name: The user name of sender’s account registered on the SMTP server.
Password: The password of sender’s account registered on the SMTP server.
SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).
SMTP Port: The SMTP port. The default TCP/IP port used for SMTP is 25.
Enable SSL/TLS (optional): Click the checkbox to enable SSL/TLS if required by the SMTP
server.
Sender: The name of sender.
Sender’s Address: The Email address of sender.
Select Receivers: Select the receiver. Up to 3 receivers can be configured.

HIKVISION DS-7608NI-I2/8P Specifications

General

Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	120 W
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Number of fans	1 fan(s)
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Still image resolution(s)	3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Analog signal format system	NTSC, PAL
Resolution at capture speed	1920x1080@60fps
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs installed	0
Number of HDDs supported	2
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Product color	Black, Silver
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
