HIKVISION DS-7608NI-I2/8P User Manual

Network Video Recorder User Manual
38

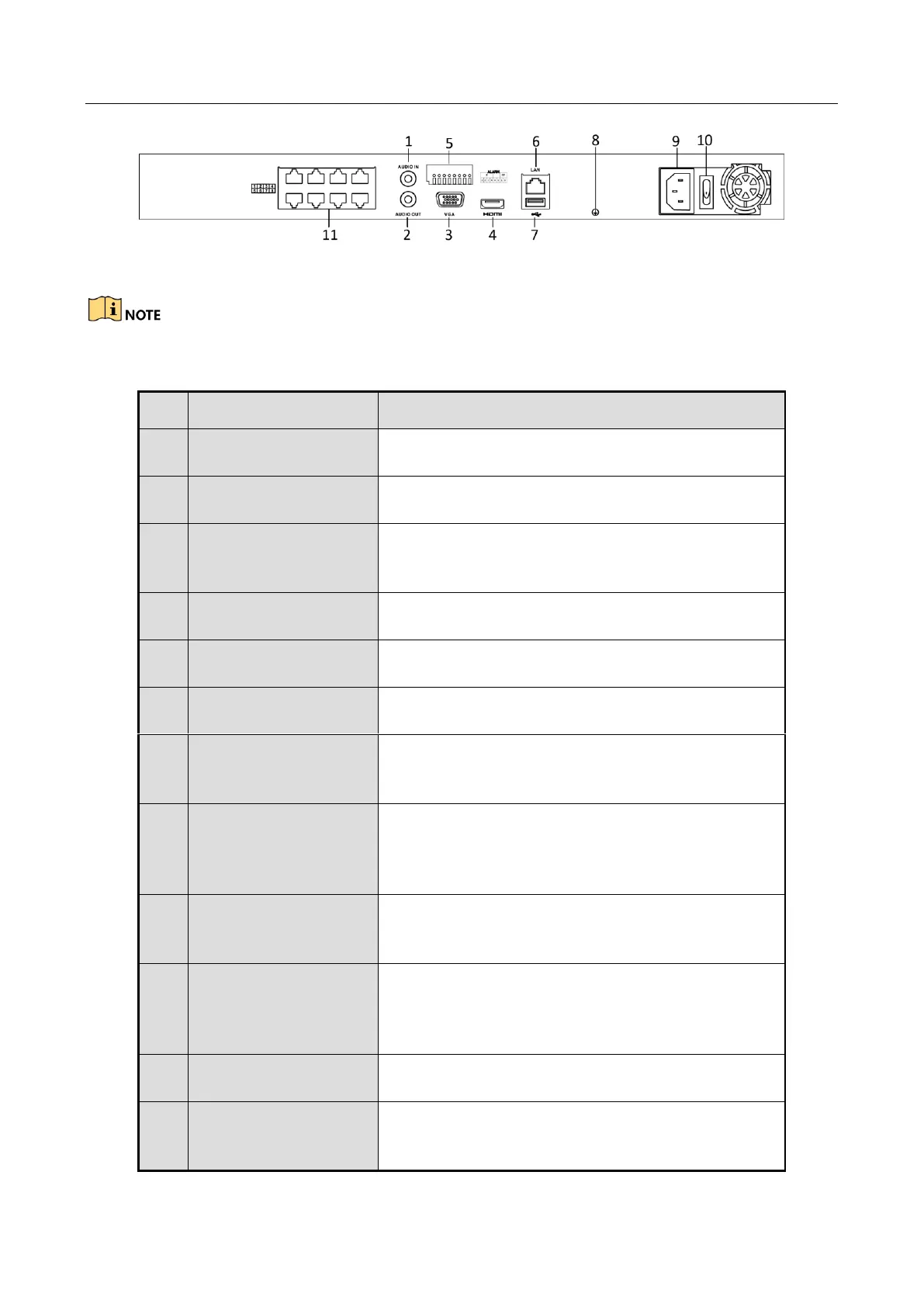

Figure 1-13 DS-7600NI-I2/8 P and DS-7600NI-K2/8 P Series
The DS-7616NI-I2/16P and DS-7632NI-I2/16P provide 16 network Interfaces with PoE function.
Table 1-9 Panel Description
No.
Name
Description
1
Audio In
RCA connector for audio input.
2
Audio Out
RCA connector for audio output.
3
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
4
HDMI Interface
HDMI video output connector.
5
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
6
LAN Network Interface
1 10/100/1000 Mbps self-adaptive Ethernet
interface
7
USB Interface
Universal Serial Bus (USB 3.0) ports for additional
devices such as USB mouse and USB Hard Disk
Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts
up).
9
Power Supply
12 VDC power supply for DS-7600NI-I4 and
DS-7600NI-K4, and 100 to 240 VAC for
DS-7600NI-I4/P and DS-7600NI-K4/P.
10
Power Switch
Switch for turning on/off the device.
11
Network Interfaces
with PoE function
Network interfaces for the cameras and to provide
power over Ethernet.

HIKVISION DS-7608NI-I2/8P Specifications

General

Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	120 W
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Number of fans	1 fan(s)
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Still image resolution(s)	3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Analog signal format system	NTSC, PAL
Resolution at capture speed	1920x1080@60fps
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs installed	0
Number of HDDs supported	2
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Product color	Black, Silver
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
