HIKVISION DS-7608NI-I2/8P User Manual

Network Video Recorder User Manual
60
 OPTION 3:
Step 1 On the IP Camera Management interface, click the Custom Adding button to pop up the Add
IP Camera (Custom) interface.

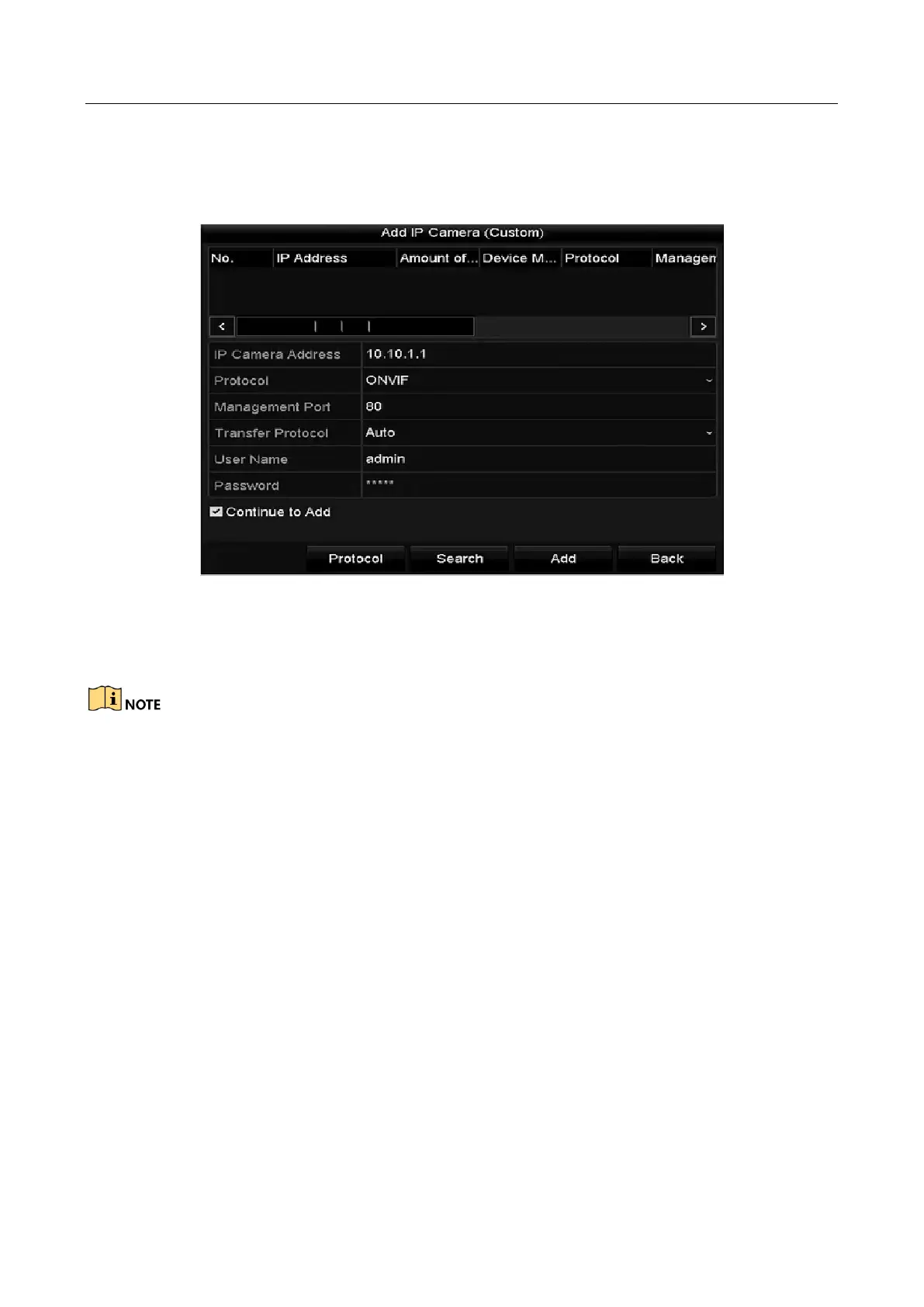

Figure 2-32 Custom Adding IP Camera Interface
Step 2 You can edit the IP address, protocol, management port, and other information of the IP
camera to be added.
If the IP camera to add has not been actiavated, you can activate it from the IP camera list on the
camera management interface.
Step 3 (Optional) Check the checkbox of Continue to Add to add other IP cameras.
Step 4 Click Add to add the camera. The successfully added cameras are listed in the interface.
Refer to the following table for the description of the icons

HIKVISION DS-7608NI-I2/8P Specifications

General

Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	120 W
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Number of fans	1 fan(s)
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Still image resolution(s)	3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Analog signal format system	NTSC, PAL
Resolution at capture speed	1920x1080@60fps
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs installed	0
Number of HDDs supported	2
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Product color	Black, Silver
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
