Network Video Recorder User Manual
130
Step 2 Menu>Playback
Step 3 Select Sub-periods from the drop-down list in the upper-left corner of the page to enter the
Sub-periods Playback interface.
Step 4 Select the stream to Main Stream or Sub Stream.
Step 5 Select a date and start playing the video file.
Step 6 Select the Split-screen Number from the dropdown list. Up to 16 screens are configurable.

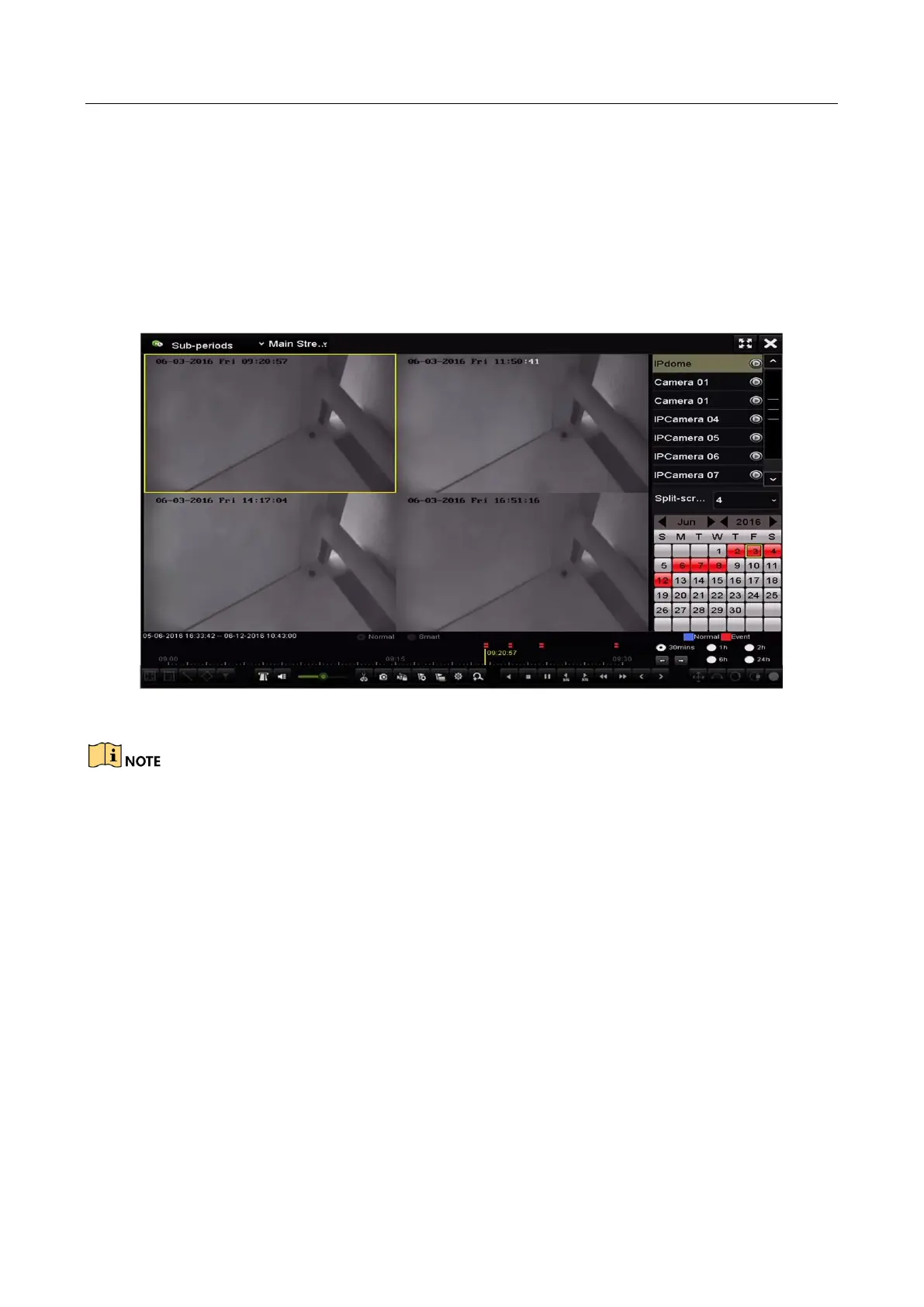

Figure 6-15 Interface of Sub-periods Playback
According to the defined number of split-screens, the video files on the selected date can be
divided into average segments for playback. E.g., if there are video files existing between 16:00 and
22:00, and the 6-screen display mode is selected, then it can play the video files for 1 hour on each
screen simultaneously.
6.1.7 Playing Back by System Logs
Purpose:
Play back record file(s) associated with channels after searching system logs.
Step 1 Enter Log Information interface.
Menu>Maintenance>Log Information
Step 2 Click Log Search tab to enter Playback by System Logs.
Step 3 Set search time and type and click Search button.

Table of Contents

Other manuals for HIKVISION DS-7608NI-K1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7608NI-K1 and is the answer not in the manual?

HIKVISION DS-7608NI-K1 Specifications

General IconGeneral
Audio system2-way
Video codecsH.265/H.265+/H.264/H.264+/MPEG4
Input bandwidth80 Mbit/s
Maximum resolution1920 x 1080 pixels
Alarm input channels4
Video input channels8 channels
Alarm output channels1
Supported resolutions1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Output current1.8 A
Output voltage48 V
Power consumption (typical)10 W
Total Power over Ethernet (PoE) budget75 W
HDMI outputYes
Networking standardsIEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN (RJ-45) ports9
Supported network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity8
HDD capacity0 GB
HDD interfaceSATA, SATA II, SATA III
Maximum storage capacity6 TB
Number of HDDs installed0
Wi-FiNo
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
CertificationEN 301489-1, EN 301489-19, EN 301489-52, EN 303413, EN 301511, EN 301908-1, EN 301908-2, EN 301908-13, EN 62311:2008
Product colorBlack
Rack capacity1U
Weight and Dimensions IconWeight and Dimensions
Depth240 mm
Width315 mm
Height48 mm
Weight1180 g
