Network Video Recorder User Manual
201
A Network Time Protocol (NTP) Server can be configured on your NVR to ensure the accuracy of
system date/time.
Step 1 Enter the Network Settings interface.
Menu >Configuration> Network
Step 2 Select the NTP tab to enter the NTP Settings interface, as shown in Figure 12-8.

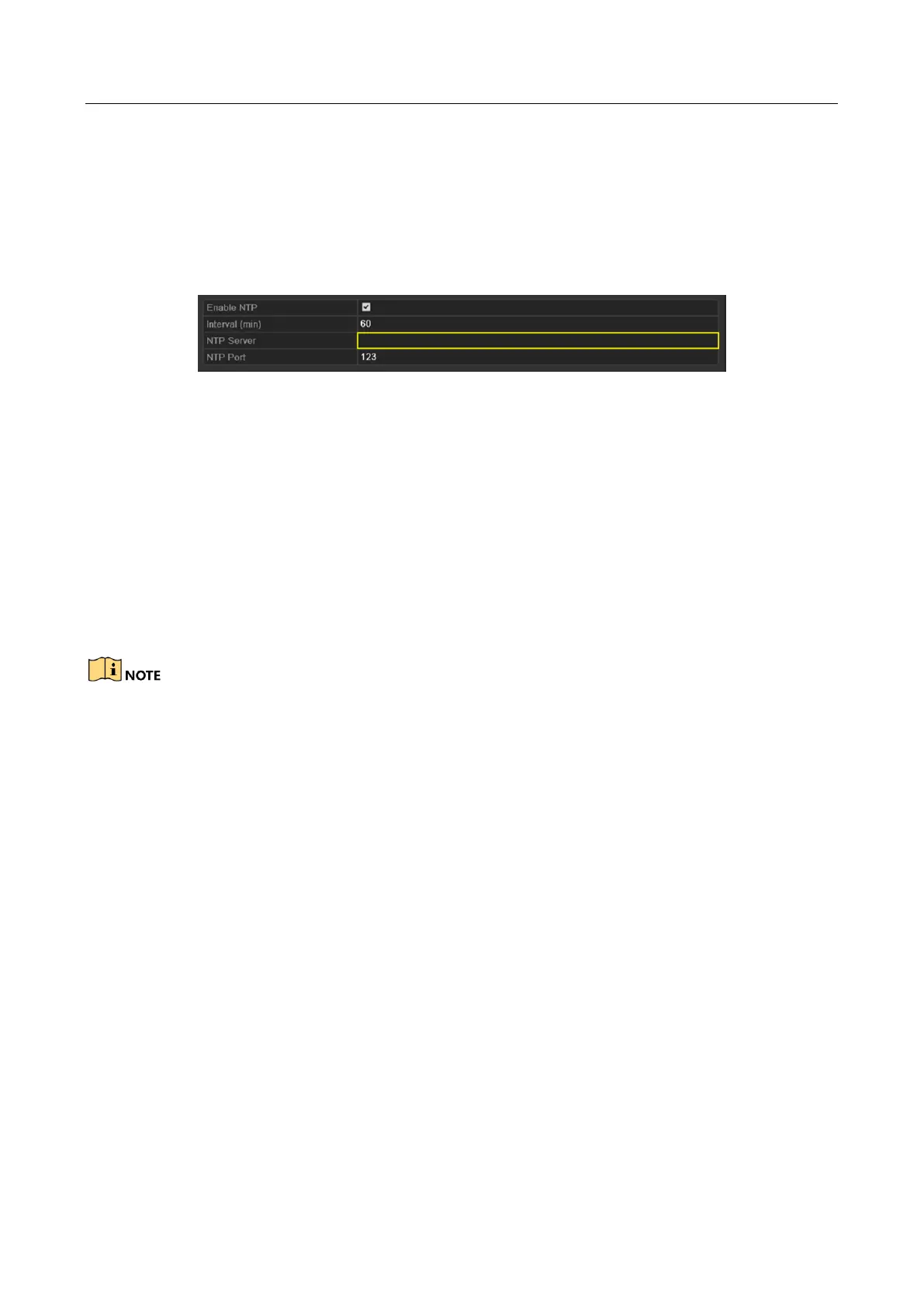

Figure 12-8 NTP Settings Interface
Step 3 Check the Enable NTP checkbox to enable this feature.
Step 4 Configure the following NTP settings:
Interval: Time interval between the two synchronizing actions with NTP server. The unit is
minute.
NTP Server: IP address of NTP server.
NTP Port: Port of NTP server.
Step 5 Click the Apply button to save and exit the interface.
The time synchronization interval can be set from1 to 10080min, and the default value is 60min. If
the NVR is connected to a public network, you should use a NTP server that has a time
synchronization function, such as the server at the National Time Center (IP Address:
210.72.145.44). If the NVR is setup in a more customized network, NTP software can be used to
establish a NTP server used for time synchronization.
12.2.4 Configuring SNMP
Purpose:
You can use SNMP protocol to get device status and parameters related information.
Step 1 Enter the Network Settings interface.
Menu >Configuration> Network
Step 2 Select the SNMP tab to enter the SNMP Settings interface, as shown in Figure 12-9.

Table of Contents

Other manuals for HIKVISION DS-7608NI-K1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7608NI-K1 and is the answer not in the manual?

HIKVISION DS-7608NI-K1 Specifications

General IconGeneral
Audio system2-way
Video codecsH.265/H.265+/H.264/H.264+/MPEG4
Input bandwidth80 Mbit/s
Maximum resolution1920 x 1080 pixels
Alarm input channels4
Video input channels8 channels
Alarm output channels1
Supported resolutions1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Output current1.8 A
Output voltage48 V
Power consumption (typical)10 W
Total Power over Ethernet (PoE) budget75 W
HDMI outputYes
Networking standardsIEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN (RJ-45) ports9
Supported network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity8
HDD capacity0 GB
HDD interfaceSATA, SATA II, SATA III
Maximum storage capacity6 TB
Number of HDDs installed0
Wi-FiNo
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
CertificationEN 301489-1, EN 301489-19, EN 301489-52, EN 303413, EN 301511, EN 301908-1, EN 301908-2, EN 301908-13, EN 62311:2008
Product colorBlack
Rack capacity1U
Weight and Dimensions IconWeight and Dimensions
Depth240 mm
Width315 mm
Height48 mm
Weight1180 g
