HIKVISION DS-7608NI-K1 User Manual

Network Video Recorder User Manual
66
2.3.4 Editing IP Cameras Connected to the PoE Interfaces
This chapter is only applicable for the following models: DS-7600NI-I2/P, DS-7700NI-I4/P,
DS-7600NI-K2/P, DS-7700NI-K4/P and DS-7600NI-K1/4P series NVR.
The PoE interfaces enables the NVR system to pass electrical power safely, along with data, on
Ethernet cabling to the connected network cameras.
Up to 4 network cameras can be connected to /4P models, 8 network cameras to /8 P models, and
16 network cameras to /16P models. If you disable the PoE interface, you can also connect to the
online network cameras. And the PoE interface supports the Plug-and-Play function.
Example:
For DS-7608NI-I2/8P, if you want to connect 6 network cameras via PoE interfaces and 2 online
cameras, you must disable 2 PoE interfaces in the Edit IP Camera menu.
 To add Cameras for NVR supporting PoE function:
Before you start:
Connect the network cameras via the PoE interfaces.
Step 1 Enter the Camera Management interface.
Menu> Camera> IP Camera

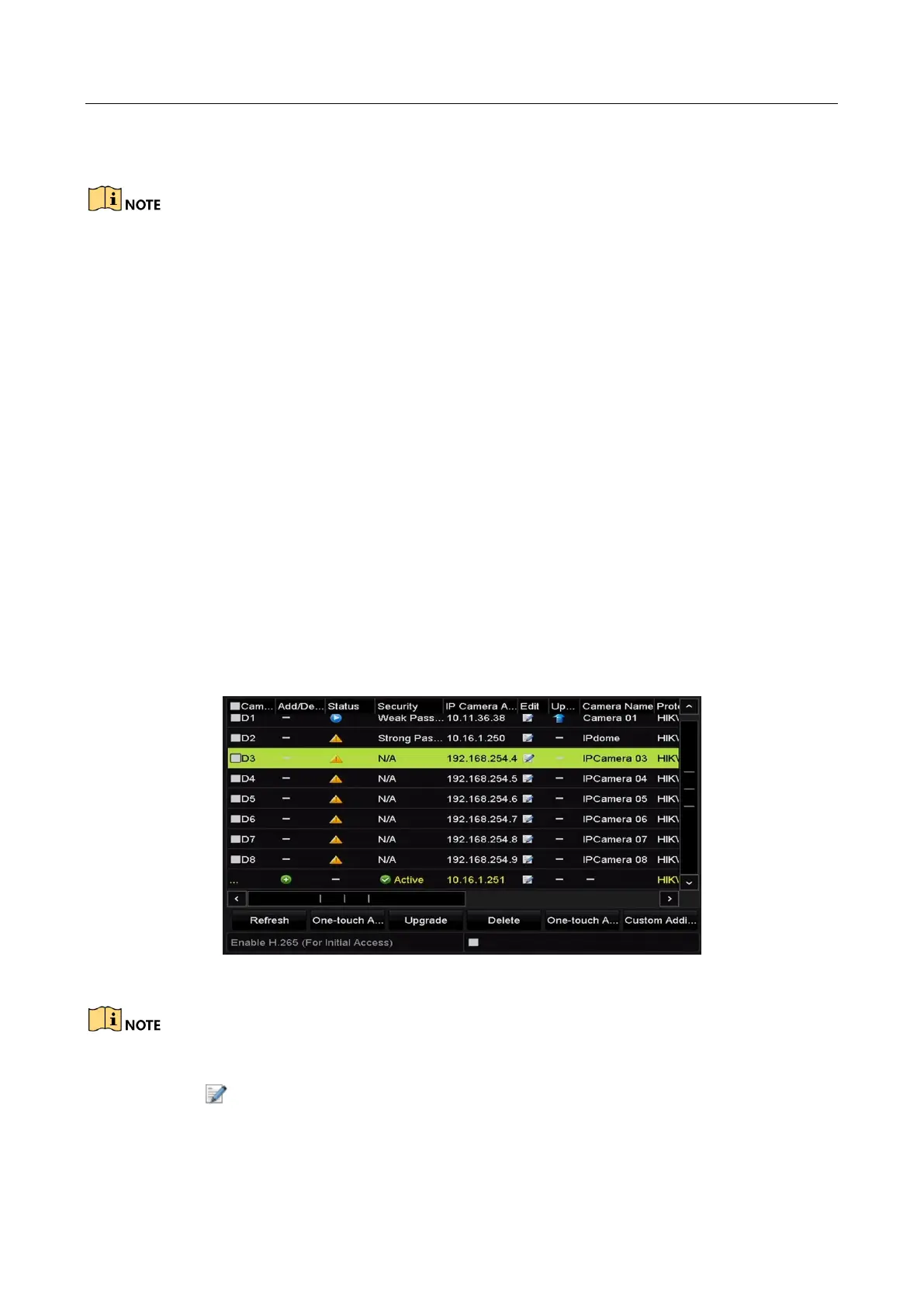

Figure 2-40 List of Connected Cameras
The cameras connecting to the PoE interface cannot be deleted in this menu.
Step 2 Click the button, and select the Adding Method in the drop-down list.
• Plug-and-Play: It means that the camera is connected to the PoE interface, so in this case,
the parameters of the camera can’t be edited. The IP address of the camera can only be

HIKVISION DS-7608NI-K1 Specifications

General

Audio system	2-way
Video codecs	H.265/H.265+/H.264/H.264+/MPEG4
Input bandwidth	80 Mbit/s
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Supported resolutions	1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Output current	1.8 A
Output voltage	48 V
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	75 W
HDMI output	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	6 TB
Number of HDDs installed	0
Wi-Fi	No
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	EN 301489-1, EN 301489-19, EN 301489-52, EN 303413, EN 301511, EN 301908-1, EN 301908-2, EN 301908-13, EN 62311:2008
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1180 g
