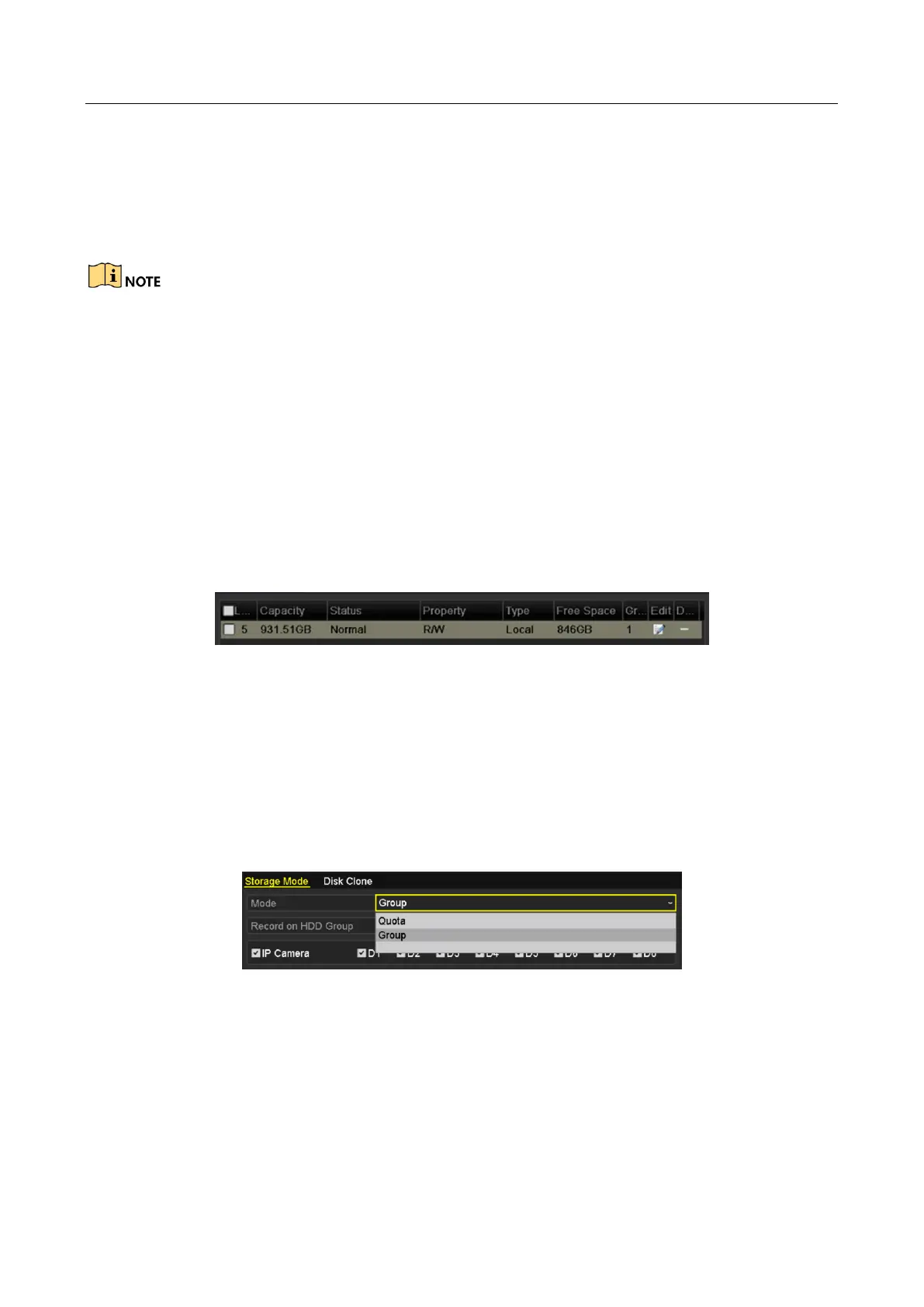

Network Video Recorder User Manual
93
Chapter 5 Recording and Capture Settings
The picture capture is supported by the DS-7600/7700/8600/9600-I (/P) series NVR only.
5.1 Configuring Parameters
Purpose:
By configuring the parameters you can define the parameters which affect the image quality, such
as the transmission stream type, the resolution and so on.
Before you start:
1) Make sure that the HDD has already been installed. If not, please install a HDD and
initialize it. (Menu>HDD>General)
Figure 5-1 HDD- General
2) Check the storage mode of the HDD
Click Advanced to check the storage mode of the HDD.
If the HDD mode is Quota, please set the maximum record capacity and maximum picture
capacity. For detailed information, see Chapter Configuring Quota Mode.
If the HDD mode is Group, you should set the HDD group. For detailed information, see
Chapter Configuring HDD Group for Recording and Capture.
Figure 5-2 HDD- Advanced
Step 1 Enter the Record settings interface to configure the recording parameters:
Menu > Record > Parameters
